Product Specification

FAL-ANT-11

The FAL-ANT-11 antenna has been specifically designed for replacing the FAL-ANT-5/7 combined antennas and for the demands of today’s Telematics and AVL systems. The new antenna comes with improved performance over existing antenna design. Combining a quadband (850/900/1800/1900MHz) cellular dipole with a high performance amplified GPS antenna in a single, low profile windscreen mounted disc antenna.

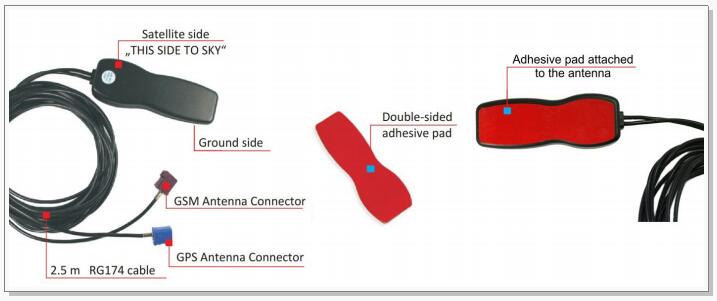

The FAL-ANT-11 is ideally suited to the current market trend of manufacturers supplying GPS receivers with an integrated LNA. Delivering 18dBi (nominal) at the connector, it also meets the specification of most “high sensitivity” GPS receivers. It is supplied in black, with 2.5 metres of RG174 cable and is terminated with FAKRA connectors.

The compact form-factor, easy installation and excellent price/performance are making out of the FAL-ANT-11 perfect accessory for AVL or fleet management applications.

FAL-ANT-12

The FAL-ANT-12 antenna has been specifically designed for replacing the FAL-ANT-10 combined antenna and for the demands of today’s Telematics and AVL systems. Combining a penta-band (850/900/1800/1900MHz, WCDMA 2100 MHz) quarter wave planar antenna with a high performance amplified GPS antenna in a single, low profile windscreen mounted wedge.

The FAL-ANT-12 is ideally suited to the current market trend of manufacturers supplying GPS receivers with an integrated LNA. Delivering 18dBi (nominal) at the connector, it also meets the specification of most “high sensitivity” GPS receivers. It is supplied in black, with 2.5 metres of RG174 cable and is terminated with FAKRA connectors.

The FAL-ANT-12's unique shape lends itself to a range of internal mounting options. The compact form-factor, easy installation and excellent price/performance are making out of the FAL-ANT-12 perfect accessory for AVL and fleet managment solutions.
