Communication Board For Gas Sensor Evaluation Modules - EM7000

Communication interface for transferring output signals from Figaro sensor evaluation modules to an external PC
PC application software for importing and saving gas measurement data on a PC
Real-time graphic display of gas concentration or output voltage of the gas sensors on a PC monitor
Easy control of gas measurement operations through the control panel on a PC monitor

Model Number: EM7000

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

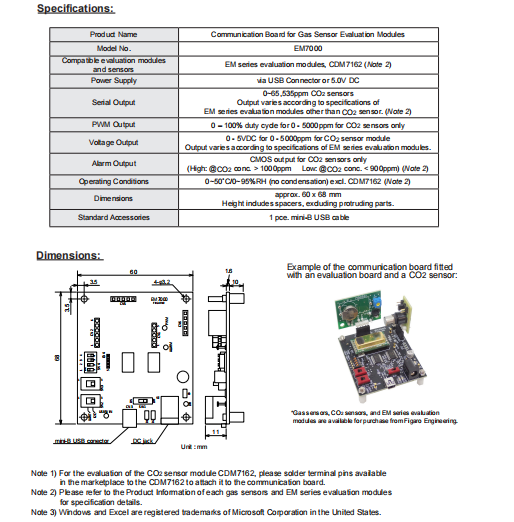

Product Specification

Communication Board For Gas Sensor? Evaluation Modules EM7000 Description:

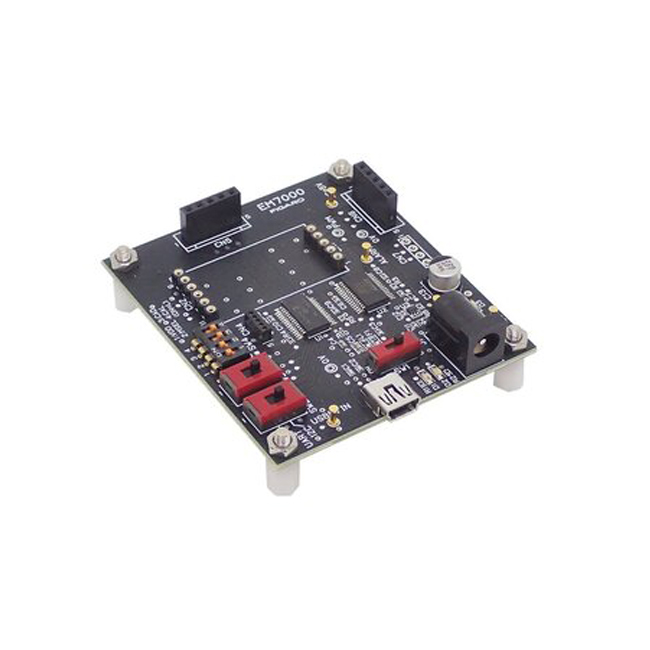

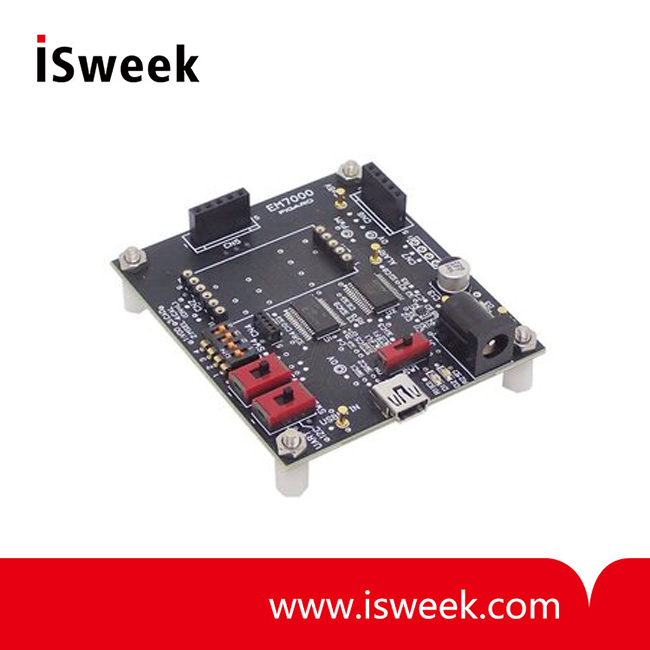

The EM7000 communication board is designed to transfer output from EM series sensor evaluation modules to an external computer for facilitating evaluation of the characteristics of various Figaro gas sensors. Equipped with a USB connector to transfer output data from the EM series evaluation modules to a PC via serial communication, an output terminal for gas concentration data in PWM format from the CDM series CO2 sensor, and a terminal for voltage output converted from PWM output, this communication board allows for a quick and easy start to evaluate the characteristics of Figaro gas sensors.

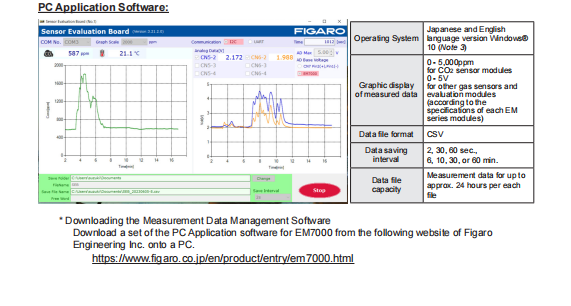

Once the PC application software is installed on an external PC, it allows for the transfer of measurement data in serial format to the PC and the graphic display of output data on the PC monitor. Measurement data can be imported and saved in CSV format on the PC using the application software and then utilized for data processing and analysis after gas measurements using other software, such as Microsoft Excel (Note 3).

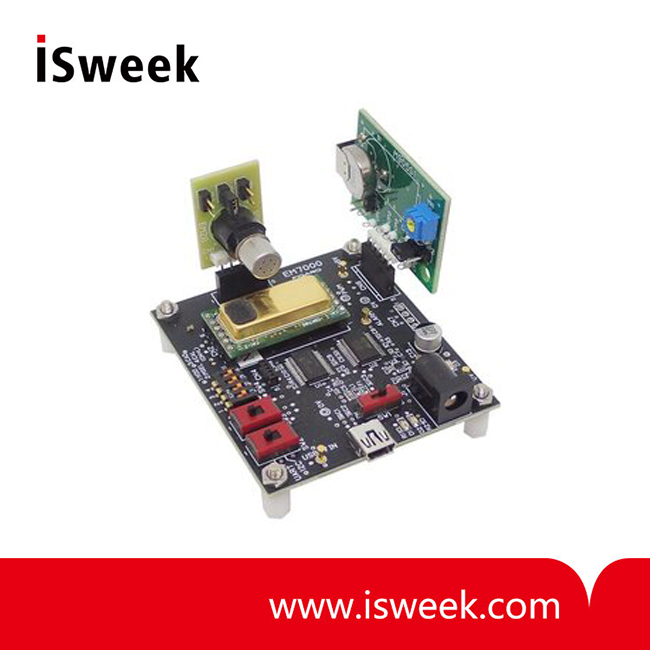

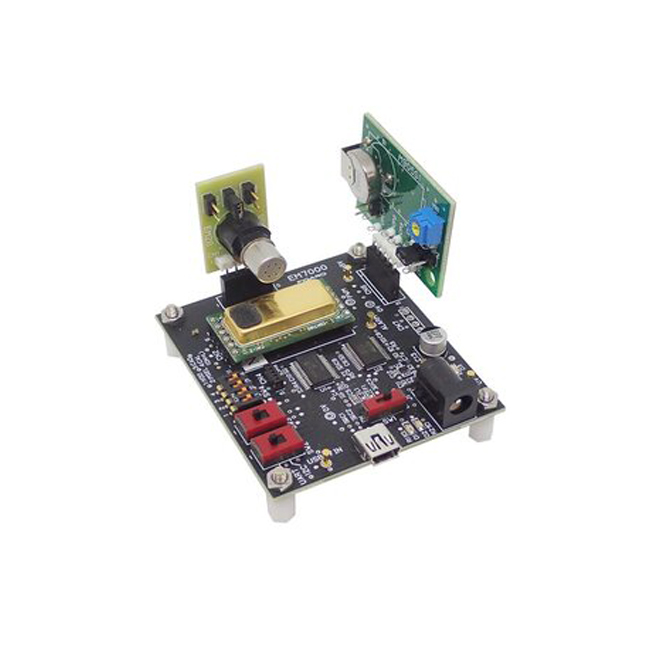

The communication board includes a USB memory stick containing PC application software and a Mini-B USB cable. Please note that Figaro gas sensors or EM series evaluation modules are not included, but can be purchased separately depending on evaluation needs.

Communication Board For Gas Sensor? Evaluation Modules?EM7000?Features:

Communication interface for transferring output signals from Figaro sensor evaluation modules to an external PC

PC application software for importing and saving gas measurement data on a PC

Real-time graphic display of gas concentration or output voltage of the gas sensors on a PC monitor

Easy control of gas measurement operations through the control panel on a PC monitor
