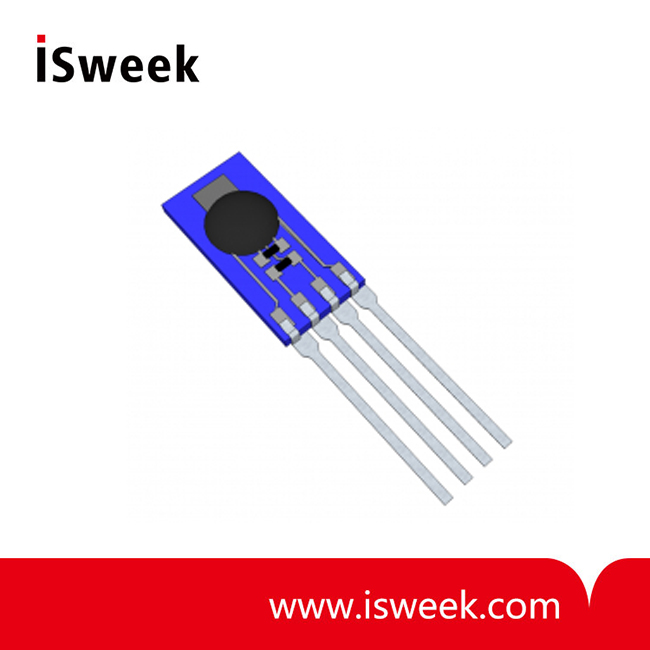

Digital Humidity and Temperature Module - HYT 271

? ?Calibrated and temperature compensated
? ?Fast response time
? ?Excellent humidity/temperature accuracy and stability
? ?High chemical resistance
? ?Wide humidity and temperature range (0 % RH to 100 % RH and -40 °C to +125 °C)
? ?Very low drift

Model Number: HYT 271
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Further advantages of the HYT 271 digital humidity module include:

? Calibrated and temperature compensated

? Fast response time

? Excellent humidity/temperature accuracy and stability

? High chemical resistance

? Wide humidity and temperature range (0 % RH to 100 % RH and -40 °C to +125 °C)

? Very low drift

? I2C protocol (address 0x28 or alternative address)

? Very stable at high humidity

? Interchangeable without adjustment

The digital IST AG HYT 271 humidity module is suitable for various handheld measurement instruments, humidity transmitters, industrial applications, measuring technology and HVAC applications.

Technical Data:

Operating temperature range	-40℃ to +125℃ ²⁾
Operating humidity range	0 % RH to 100 % RH
Hysteresis	< ±1 % RH
Linearity error	< ±1 % RH
Temperature error	0.05 % RH/K (0℃ to +60℃)
Operating voltage	2.7 V to 5.5 V
Current consumption (nominal)	< 22 μA at 1 Hz measuring rate; 850 μA max.
Current consumption (sleep)	< 1 μA
Digital interface	I²C, address 0x28 or alternative address
Operating voltage (limits)	-0.3 V to 6 V
Storage condition	-20℃ to +50℃
	Humidity	Temperature
Accuracy	±1.8 % RH at +23℃ (0 % RH to 90 % RH)	±0.2 K (0℃ to +60℃)
Reproducibility	±0.2 % RH	±0.1 K
Resolution	0.03 % RH	0.015℃
Response time t₆₃	< 4 s	< 5 s
Long-term drift	< 0.5 % RH/a (at +23℃ and 30 % RH to 70 % RH - laboratory conditions)	< 0.05 K/a
Measuring principle	Capacitive polymer humidity sensor	PTAT (integrated)
