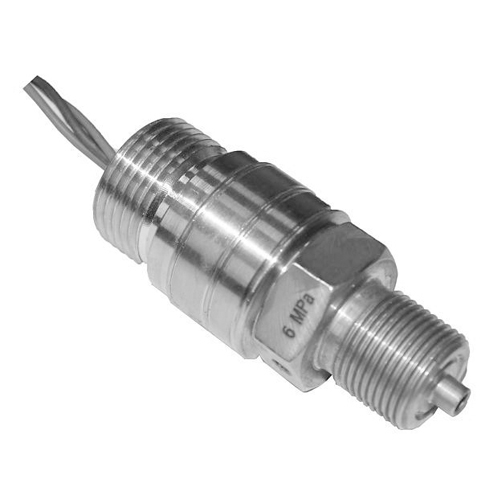

Gage Pressure Microelectronic Transducers 0~160MPa, -40℃~+120℃ - MIDA-MG-70

pressure range 0~160MPa
Operating temperature range (-40℃~+120℃)
high accuracy, high stability
wear resistance, impact resistance and anti-corrosion
Accuracy: ±%0,1 (0,2) of output signal variation range
Supply voltage: 5-15 VDC

Model Number: MIDA-MG-70

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Gage Pressure Microelectronic Transducers 0~160MPa, -40℃~+120℃

MIDA-MG-70

Features:

pressure range 0~160MPa

Operating temperature range??(-40℃~+120℃)

high accuracy, high stability

wear resistance, impact resistance and anti-corrosion

Application:

aviation and aerospace fields

navigation and shipbuilding industry

petroleum and chemical industry

power plant and nuclear power plants

electrical submersible pump corollary equipment

industrial process pressure control

high precision digital pressure gauge

Specification

Applications	?Industrial instrumentation & process control systems
Measured medium	?Liquids and gases compatible with titanium alloys and stainless steels
Pressure range, MPa	?0-0,006… - 0-160
Accuracy (comb. L.H.R), no more?than, ±%	?0,1 (0,2) of output signal variation range
Zero output (at temperature of?20℃), mV/V	?± 0,2 with accuracy 0,1%; ± 0,3 with accuracy 0,2%; ?± 0,5 within pressure range 0-0,006
Output range, mV/V	?5 ± 0,2 with accuracy of 0,1%; ?5 ± 0,3 with accuracy of 0,2%; ?3± 0,2 within pressure range 0-0,01 MPa ?1,5 ± 0,2 for 0-0,006 MPa range with accuracy 0,1%; ?1,5 ± 0,3 for 0-0,006 MPa range with accuracy 0,2%
Operating temperature range, °С	?-40 ...+120
Compensation temperature?range, °С	?-40 ...+120
Additional temperature error in compensated temperature range, % of zero output, no more than	?2 with accuracy of 0,1%; ?3 with accuracy of 0,2%; ?3 for 0-0,006 MPa range with accuracy of 0,1%; ?4,4 for 0-0,006 MPa range with accuracy of 0,2%
Supply voltage, V	?5-15 DC
Overpressure, no more than	?2 Pnom for ranges from 0-0,006 to 0-2,5 MPa; ?1,5 Pnom for ranges from 0-4 to 0-60 MPa; ?1,25 Pnom for ranges from 0-100 to 0-160 MPa
Insulation resistance	?Not less than 100 MOhm at voltage of 500 V DC
