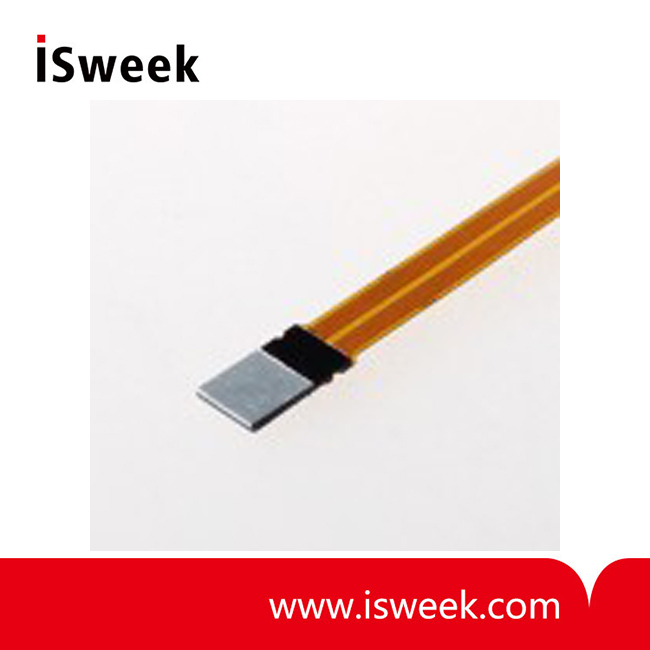

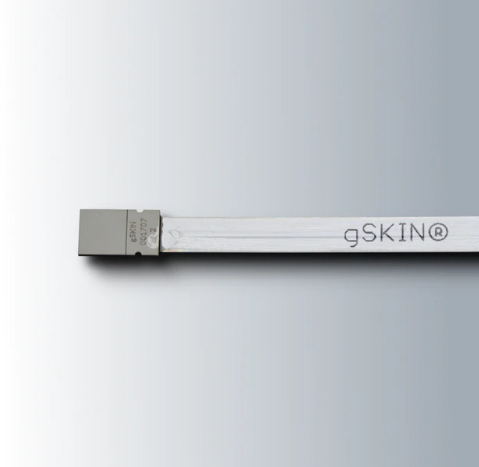

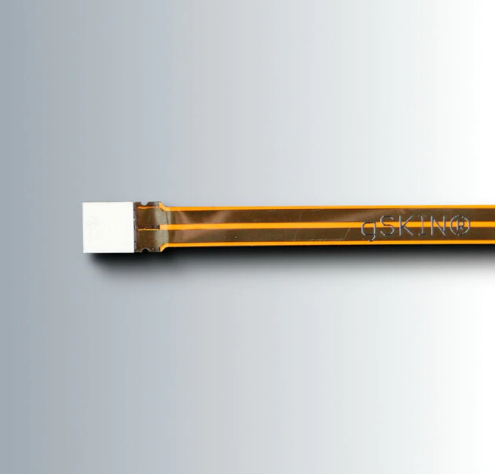

Heat Flux Sensor - gSKIN-XM
? Ultra-high resolution of thermal energies and temperature differences.
? Low invasiveness and thickness.
? Models with connector compatible with all gSKIN?DLOG Data Loggers.
? All sensors with conductive heat flux calibration cohering to ISO 8301.
- Model Number: gSKIN-XM
- Data Sheet:
- Quantity:
- - +
Product Specification
1.Heat Flux Sensor - gSKIN-XM Descriprion:
Small heat flux sensor for performing reliable measurements under controlled conditions. Available both without and with connector.
2.Heat Flux Sensor - gSKIN-XM Features:
? Ultra-high resolution of thermal energies and temperature differences.
? Low invasiveness and thickness.
? Models with connector compatible with all gSKIN?DLOG Data Loggers.
? All sensors with conductive heat flux calibration cohering to ISO 8301.
3.Heat Flux Sensor - gSKIN-XM Applications:
R&D, thermal optimization, energy efficiency, industrial monitoring of thermal properties.
4.Heat Flux Sensor - gSKIN-XM Technical parameters:
|
Product |
|
|
gSKIN XM |
|
|
Detector Type |
|
|
Thermoelectric |
|
|
Surface Material (Sensing Area) |
|
|
Aluminum |
|
|
Sensing Dimensions (mm) |
|
|
4.4 x 4.4 x 0.5 |
|
|
Heat Flux Range Min / Max [kW/m2] |
|
|
-150 / 150 |
|
|
Noise Equivalent Heat Flux per area [W/m2] / absolute [μW] |
|
|
0.340 / 6.6 (Experimentally evaluated values under optimal steady state conditions). |
|
|
Heat Flux Resolution per area [W/m2] with gSKIN? DLOG / absolute [μW] |
|
|
0.41 / 7.9 (Guaranteed minimum heat flux resolution using the gSKIN? DLOG-4219) |
|
|
Temperature Difference Resolution [μK] |
|
|
～140 |
|
|
Response Time (0-95%) [s] |
|
|
0.7 |
|
|
Min. /Avg. Sensitivity (S) [μV/(W/m2)] |
|
|
1.5 (Only a reference point). |
|
|
Max. Compressive Force when clamped [kgf] |
|
|
< 2 |
|
|
Electrical Resistance [Ohm] |
|
|
< 20 |
|
|
Thermal Conductivity [W/(m*K)] |
|
|
～1.1 |
|
|
Linearity with Power [±%] |
|
|
1 |
|
|
Operating Temperature Range Min/Max [°C] |
|
|
-50 / 150 |
|
|
Calibration Accuracy [±%] |
|
|
3 |
|
|
Calibration Temperature Range Min/Max [°C] |
|
|
-30 / 70 (Conductive heat flux calibration cohering to the ISO8301 standard with mean temperature of 22.5°C). |
|
|
Flexprint Length (f) [cm] |
|
|
5 |
|
|
Temperature Dependence of S [%/°C] |
|
|
0.25 |
|
|
Homogeneity [±%] |
|
|
1 (The sensitivity increases or decreases as the temperature goes above or below 22.5°C). Position dependent signal change across sensing area. |
|
|
Cable Length (c) [cm] |
|
|
100 |
|
