Product Specification

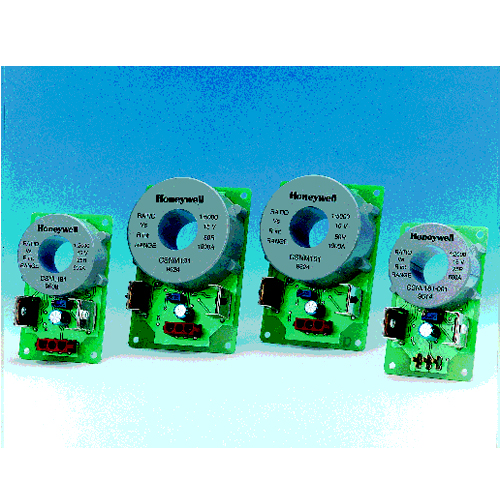

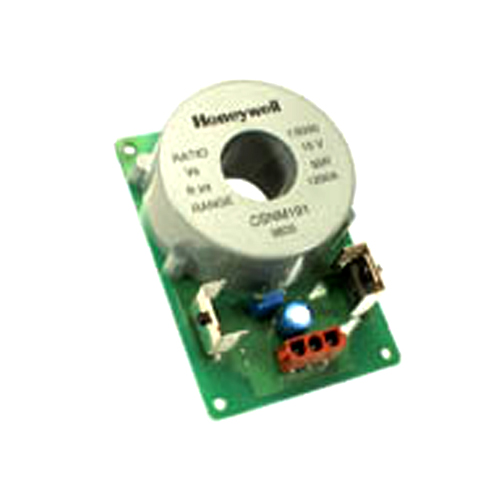

Hall Effect Current Sensors - CSN Series

Description
These new industrial current sensors extend Honeywell’s closed loop current sensing capability. They offer increased current measuring capability up to 1000Aover an extended temperature range of -40°C to +85°C and are available with different terminal options.

The sensors are closed loop devices based on the principle of the hall effect and null balance method. The output from the current sensor is the balancing current which is a perfect image of the primary current reduced by the number of secondary turns at any time. This current can be expressed as a voltage by passing it through a resistor.

Features
● Current sensing up to 1000A
● Measures DC, AC and impulse currents
● Very fast response
● High overload capability
● Extended temperature range -40°C to +85°C
● Different termination styles
● Optional conformal coating

Benefits
● Increased measuring range in compact package
● No restriction on input current waveform
● Output signal accurately tracks changes in input signal
● Sensor integrity unaffected
● Improved reliability
● Flexibility of connection style
● Provides additional protection to the sensors

Typical Applications
● Variable speed drives
● Overcurrent protection
● Power supplies
● Feedback control systems
● Robotics
● Welding equipment

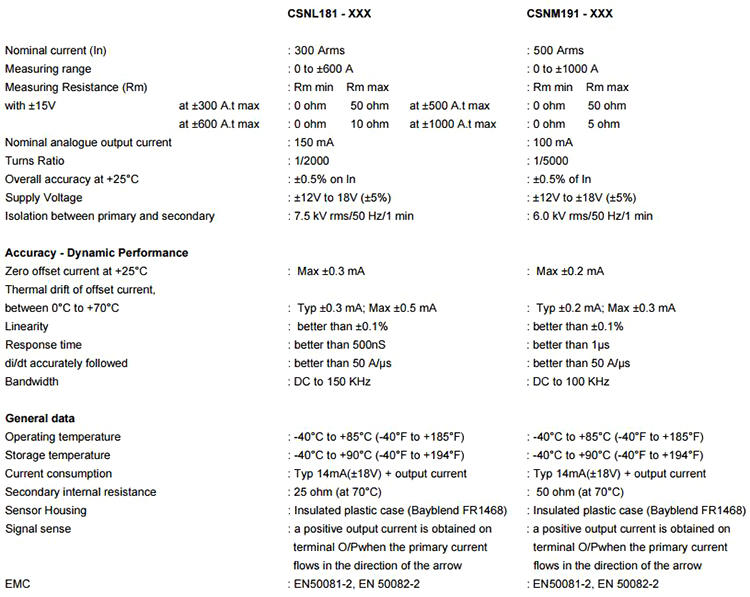

Electrical Data
