Product Specification

Product Summary：

    HCS2D-3V is a Single In-Line Package type of HCS2D-3V with ready installed V-Core capacitor for easy and convenient application.

    HCS2D-3V is an improved version of HumiChip?, the most advanced and cost effective humidity and temperature sensing solution for virtually any type of applications.

    Capacitive polymer sensor chip developed and fabricated in-house and CMOS integrated circuit with EEPROM are integrated into one embedded system in a reflow solder-able SMD package.

    Individually calibrated and tested, HCS2D-3V performs ±2% from 20% to 80%RH (±4% over entire humidity range), and yet, is simple and ready to use without further calibration or temperature compensation.

Enhanced Features：

? Fully Calibrated & Temperature Compensated

? Improved Temperature Accuracy & Range (±0.2℃ for -20 ~ 60℃) s

? Extremely Low Current Consumption (13? operating)

? Enhanced Accuracy of RH% (±2%RH, 14bit )

? Fast Natural Recovery after Reflow Soldering

? Low Current Consumption

? SIP(Single-In-line-Package)

? Enhanced Reliability against Chemical

Application：

? Energy Saving HVAC Control

Air Conditioning, Refrigeration, IAQ monitoring,Vent Fans, Home Appliances, Humi/Dehumidifiers

? Process Control & Instrumentations

Medical Instruments, Handheld Devices, Weather Stations, Food Processing, Printers, RFIDs …

? Automobile & Transportation

Cabin Climate Control, Defogging Control

Condensing Preventive Device …,

? Mass Quantity Application

OEM custom specification available

Sensor Performance：

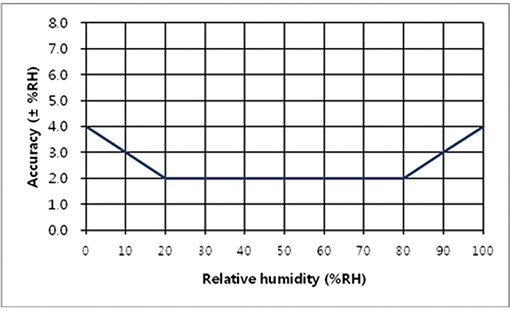

Relative Humidity (%RH)

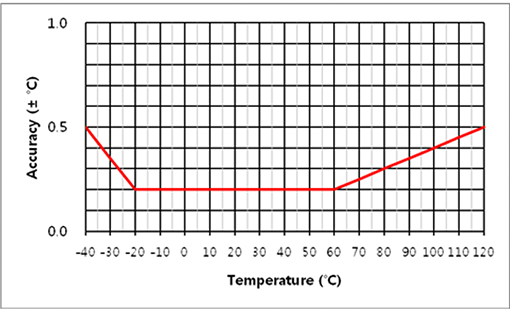

Temperature (℃)
