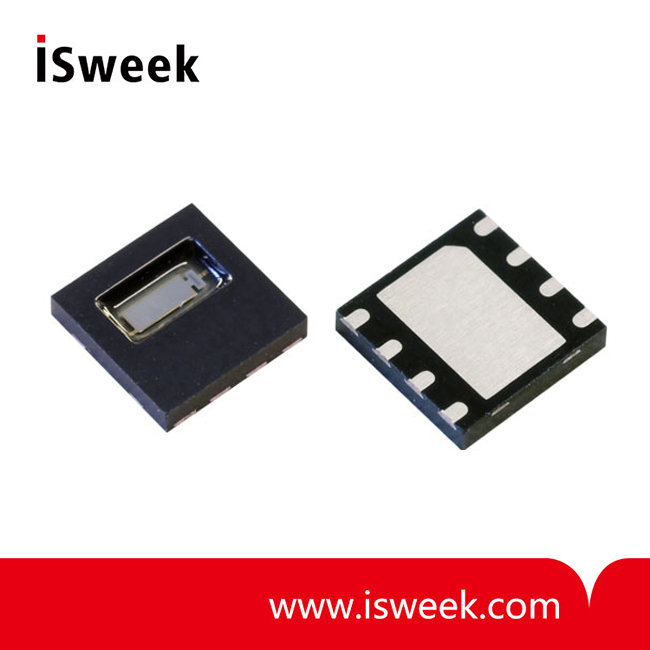

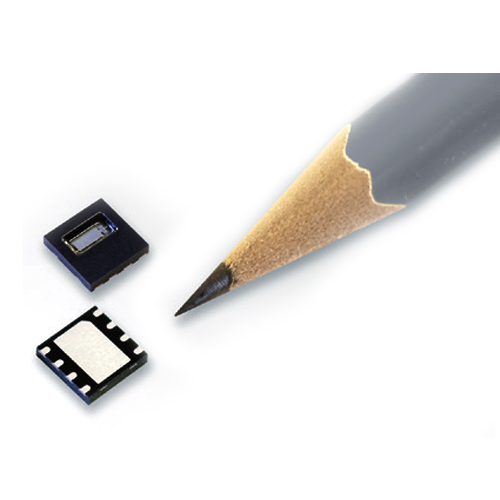

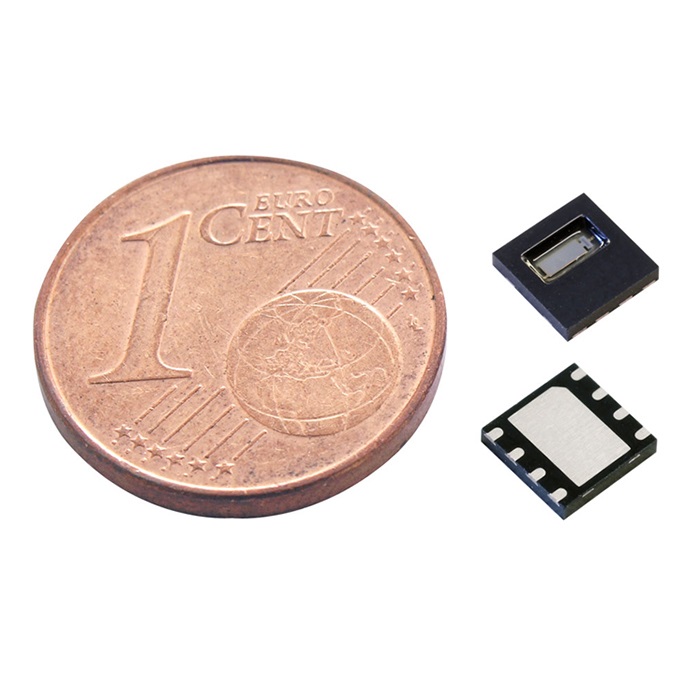

Humidity and Temperature Sensor - HCT01

? Nominal capacitance: 70 pF
? Sensitivity: 0.25 pF /% RH
? Working Humidity range: 0...100% RH
? Working Temperature range: -40...140°C (-40...284°F)
? Hysteresis: < 1.85%
? Respons time t63: ≤ 6s
? Maximum DC voltage: < 0.3V

Model Number: HCT01
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

HCT01?Humidity and Temperature Sensor?Description
HCT01 humidity/temperature sensors combine high quality, long time approved thin-film sensor technology simple processability and the possibility of a cost-efficient integration into customer application.

The pre-adjusted capacitive E+E humidity sensorelement saves complicated and time-consuming humidity adjustment. Highly accurate thin-film elements are used for the temperature measurement – a must for precise dew point determination.

The DFN packaging guarantees maximum mechanical sensor protection and enables reflow soldering. A protective film on the surface of the humidity sensor ensures extensive protection against contamination like dust, salt or chemical deposit.

Depending on the individual application, accuracy requirements and existing interface electronics, different cost-saving evaluation circuitries are available. Do not hesitate to contact our specialists for further information and design-in support.

HCT01?Humidity and Temperature Sensor?Features
? RH and T sensor in one package
? RH adjusted
? Mature humidity sensor technology
? High temperature accuracy
? Reflow solderable
? Integrated dust filter
? Standardized DFN package

HCT01?Humidity and Temperature Sensor?Technical Data

Humidity Element
Humidity Element	humidity: 0...100% RH temperature: -40...140°C (-40...284°F)
Nominal capacitance?C₀	70 pF
Accuracy RH at 30°C	HCT01-00: ?non adjusted (C₀: 70±7 pF) HCT01-02: ?±2% RH (20...80% RH) ?±3% RH (0...90% RH) HCT01-03: ?±3% RH (20...80% RH) ?±4.5% RH (0...90% RH)
Sensitivity	0.25 pF /% RH
Temperature dependence	dC = -0,00083*RH(T-30°C) [pF]
Hysteresis	< 1.85%
Long term stability	drift < 0.5% / year
Maximum supply voltage (no DC voltage)	5V max (Upp)
Maximum DC voltage	< 0.3V
Parallel Resistance	R_p?≥ 100 M?
Serial Resistance	R_s?≤ 1200 ?
Respons time	t₆₃?≤ 6s
Material housing	plated Cu lead-frame and green epoxy-based compound fully RoHS and WEEE compliant
Lead finish	NiPdAu
Sensor protection	E+E coatin
Storage temperature	-40..55°C ?(-40...131°F)
Dimensions	5x5x0.95 mm
Packaging	tape and reel

Temperature Element	Mo1k	Pt1000
Nominal resistance (at 25°C / ?77°F)	R₂₅ = 1000 Ohm	R₀ = 1000 Ohm
Accuracy	dt = ±[0.2+0.008 * (t-25)] K	DINB
Respons time	t₆₃?≤ 6s
Characteristics	R = R₀ * (1+At+Bt²) R₀ = 928.73 Ohm A = 0.0030659 B = 3.41*10 -7	acc. EN60751
Maximum continuous current (t_LL A UL )	0.1mA (I_cont)
Maximum current?	1mA (I_max)
Self heating	0.35 K/mW
