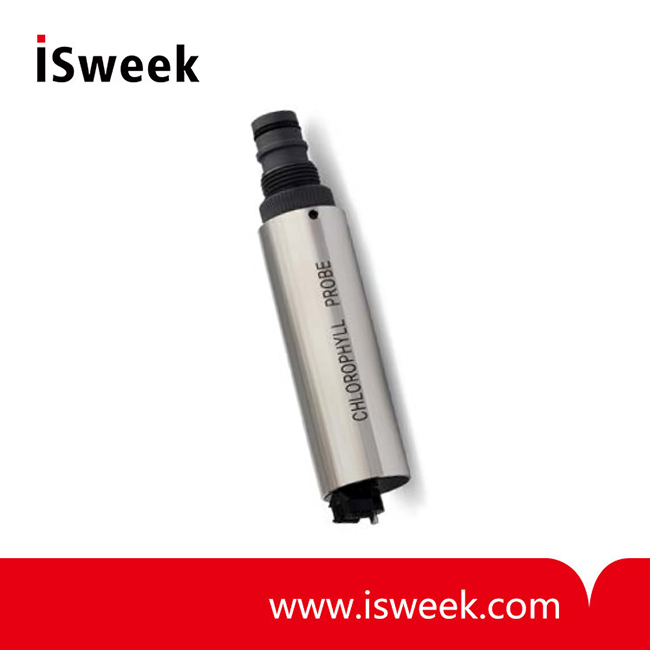

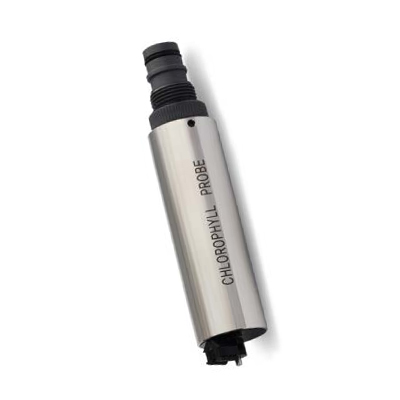

Integrated Optical Chlorophyll A Sensor - CHLOROPHYLL-200
? Measuring range: 0 ~ 500ug/L
? ?Resolution: 0.1ug/L?
? Accuracy: ±5%F.S.?
? Temperature: 0 ~ 40℃?
? Pressure: <0.1MPa?
? Power supply: 7 ~ 16VDC ±10%?
? Output signal: Rs485(Modbus/RTU)?
- Model Number: CHLOROPHYLL-200
- Data Sheet:
- Quantity:
- - +
Mouse over image to zoom
Product Specification
CHLOROPHYLL-200 integrated chlorophyll A sensor Description
This product is an integrated optical chlorophyll A transmitter, using ultraviolet absorption measurement principle, protection class IP68, can be installed directly into the formula, suitable for all occasions need to measure chlorophyll A, such as marine environmental monitoring and other industries.
CHLOROPHYLL-200 integrated chlorophyll A sensor Technical Specifications
|
Model |
CHLOROPHYLL-200 |
|
Measuring range |
0 ~ 500ug/L |
|
Resolution |
0.1ug/L |
|
Accuracy |
±5%F.S. |
|
Temperature |
0 ~ 40℃ |
|
Pressure |
<0.1MPa |
|
Power supply |
7 ~ 16VDC ±10% |
|
Output signal |
Rs485(Modbus/RTU) |
|
Wetted Material |
SS316L |
|
Installation |
Input type |
