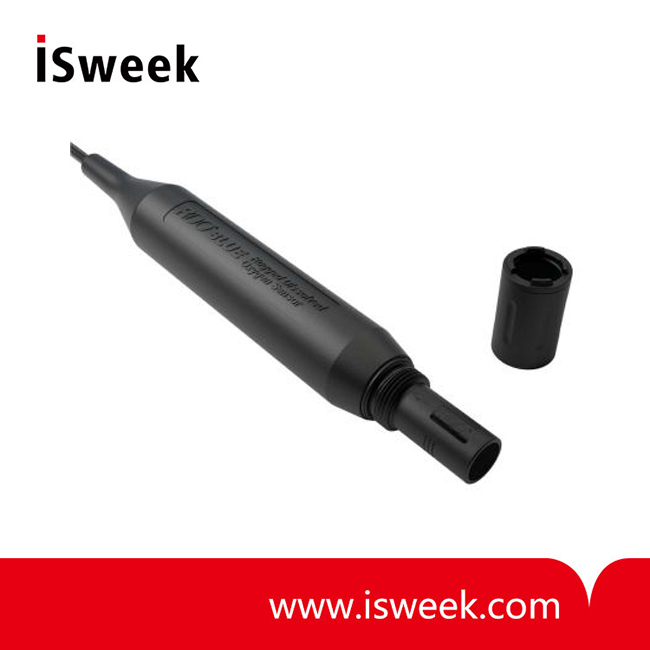

Optical Dissolved Oxygen Sensor - RDO BLUE

? POND AQUACULTURE
? RECIRCULATING AQUACULTURE SYSTEMS
? OPEN PEN AQUACULTURE
? SURFACE WATER SPOT SAMPLING
? REMOTE MONITORING VIA TELEMETRY

Model Number: RDO BLUE
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

RDO? Blue Optical Dissolved Oxygen Sensor Description:

RDO Blue uses In-Situ’s patented Optical Rugged Dissolved Oxygen technology, an EPA-approved dissolved oxygen measurement method ideal for measuring DO and temperature in even the harshest environments. Suitable for handheld use or long-term deployment in fresh water or saltwater, this low-maintenance dissolved oxygen probe offers robust performance at a lower cost than other DO meters.

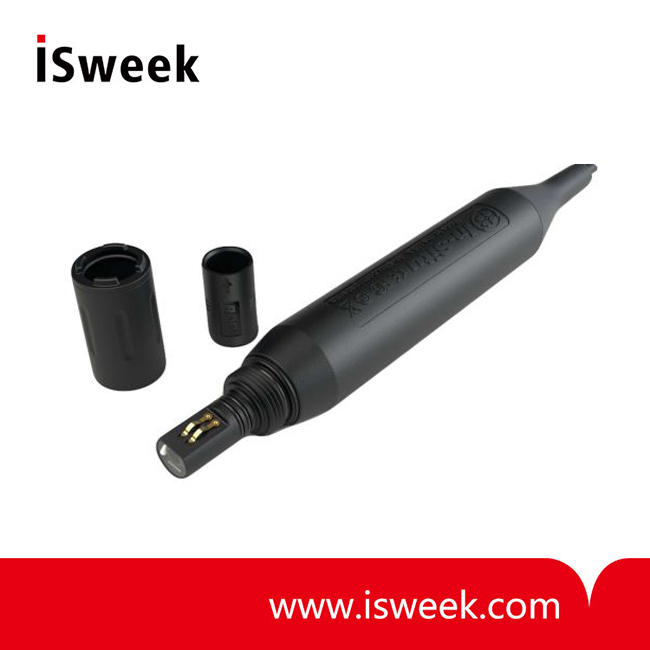

RDO Blue requires no calibration or conditioning prior to deployment and doesn’t use membranes. The replaceable RDO Smart Sensor Cap stores calibration coefficients for automatic, error-free setup. And a unique, three-layer system provides unmatched chemical and abrasion resistance.

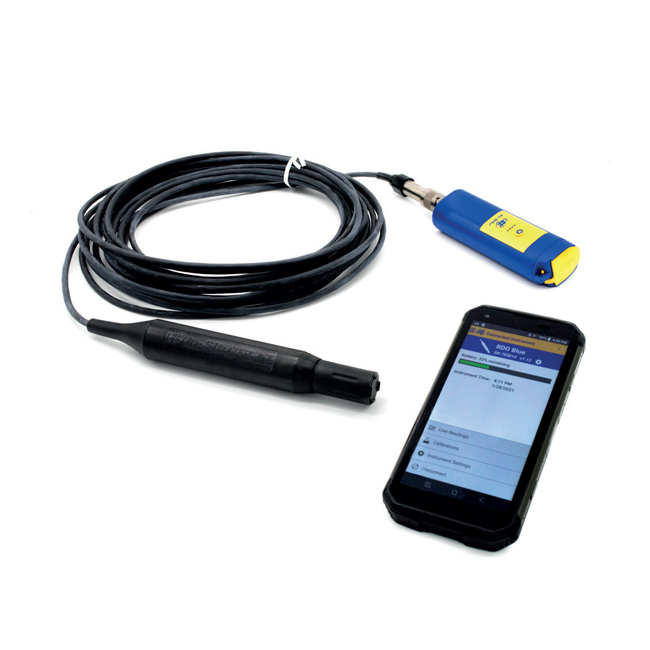

Use included Modbus/RS485 communication protocol to easily integrate with PLC systems or telemetry with HydroVu data services for real-time feedback and process control.

RDO? Blue Optical Dissolved Oxygen Sensor Applications:

? POND AQUACULTURE

? RECIRCULATING AQUACULTURE SYSTEMS

? OPEN PEN AQUACULTURE

? SURFACE WATER SPOT SAMPLING

? REMOTE MONITORING VIA TELEMETRY

RDO? Blue Optical Dissolved Oxygen Sensor Technical parameters:

SENSOR RATINGS
SENSOR TYPE	Optical Dissolved Oxygen Sensor
RANGE, DO	0-60 mg/L; 0-600% Saturation
ACCURACY, DO	+/- 0.1 mg/L (0-20 mg/L) +/-2% (20-60 mg/L)
RESOLUTION, DO	0.01 mg/L
RESPONSE TIME, CAP	T63<5s, T90<45s, T95<60s (RDO-X cap)
UNITS, DO	mg/L, ppm, % saturation
RANGE, TEMP.	-5℃ to 50℃ (23°F to 122°F)
ACCURACY, TEMP.	+/- 0.1℃
RESOLUTION, TEMP.	0.01℃
UNITS, TEMP.	Celsius, Fahrenheit
SALINITY COMP.	Fixed or real-time capable
BAROMETRIC COMP.	Fixed or real-time capable
METHODS	EPA-approved In-Situ? RDO methods 1002-8-2009, 1003-8-2009, 1004-8-2009 Standard Methods 4500-O
ENVIRONMENTAL RATINGS
PRESSURE	150 psi from 0° to 50℃
DEPTH	100m (328ft) @ 25℃
OPERATING TEMP. (NON-FREEZING)	-5.0℃ to + 50.0℃（23°F to 122°F）
STORAGE TEMP.	-40℃ to + 65℃（-40°F to 149°F）
COMPLIANCE	EMC 2014/30/EU IEC 61000-6-2:2005 EN 55011:2009
IP RATING	IP-67 with sensor cap off; IP-68 with sensor cap installed
CHEMICAL RATINGS
INTERFERENCES	Alcohols >5%; hydrogen peroxide > 3%; sodium hypochlorite (commercial bleach) > 3%; gaseous sulfur dioxide; gaseous chlorine. Do not use in organic solvents (e.g., acetone, chloroform, methylene chloride, etc.), which may swell the sensing element (foil matrix) and destroy it.
GENERAL RATINGS
DIMENSIONS	L 22.06 cm (8.69 in) x D 2.95 cm (1.16 in)
WEIGHT	205 g (0.5 lb) (without cable)
WETTED MATERIALS	Ryton?(PPS), Cycoloy? (PC/ABS), PC/PMMA, TPU
COMMUNICATION OUTPUT	Modbus/RS485
READING RATE	1 reading every 1 second
POWER REQUIREMENTS	8 to 36 VDC
POWER CONSUMPTION	Maximum (measurement): 50 mA at 12 VDC Idle (communication only): 2 mA at 12 VDC
WARRANTY	2 years from date of shipment
