Product Specification

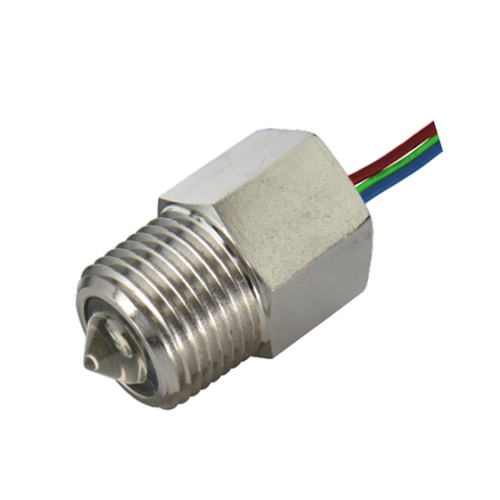

Optomax Industrial Glass Series Liquid Level Switches Description
The Optomax Industrial Glass range liquid level switches can operate in aggressive environments due to their stainless steel and glass construction while offering industrial supply voltages and outputs that can directly drive loads.

The microcontroller based Optomax Industrial Glass Range liquid level switches are solid state, incorporating an infra-red LED and phototransistor which are optically coupled by the tip when the sensor is in air. When the sensing tip is immersed in liquid, the infra-red light escapes making the output change state. The sensor can detect the presence or absence of almost any liquid type; oil or water based. It is insensitive to ambient light and is not affected by foam when in air or by small bubbles when in liquid.

A range of N and P type output configurations can sink or source up to 1A at supply voltage ranges from 4.5 to 15.4Vdc or 8 to 30Vdc and can be configured to output a high or low signal in either a wet or dry state. Options for connecting to inductive loads or digital interfaces are also available.

With housing threads suitable for external sensor mounting and for use in two operating temperature ranges; Standard (-25 to 80°C) or Extended (-40 to 125°C).

LLG810D3-003 Liquid Level Switche FEATURES
? Liquid level switches that can detect almost any liquid type; oil or water based
? Suitable for harsh environments; robust stainless steel housing and glass tip
? Compact size
? Standard mounting thread; 1/2” NPT

LLG810D3-003 Liquid Level Switche BENEFITS
? Suitable for use in high pressure applications
? Suitable for use in high pressure applications
? Direct load driveDirect load drive

LLG810D3-003 Liquid Level SwitcheTECHNICAL SPECIFICATIONS

LLG810D3-003 Liquid Level Switche OUTPUT VALUES
