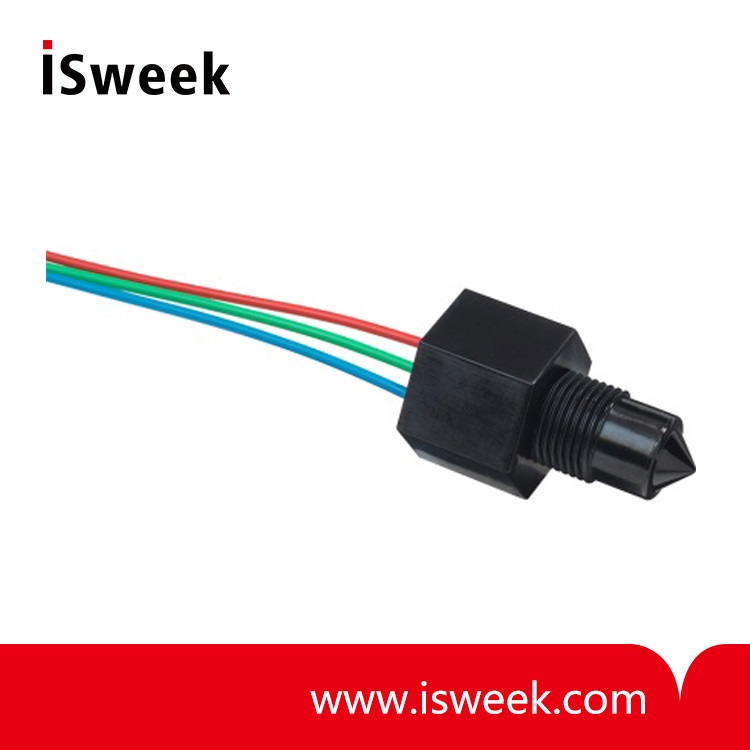

Optomax Industrial Series Optical Liquid Level Sensors - LLC200D324-002

? Supply voltage: 8V DC to 30V DC
? Supply current: 7.5mA max. (Vs = 30V DC)
? Output sink and source current: 1A?
? Operating temperatures?: -25°C to +80°C?
? Storage temperatures?: -30°C to +85°C?
? Housing material?: Polysulfone?
? Housing Type: M12x1?
? ?Output Type: N-Type with 10kΩ pull-up

Model Number: LLC200D324-002
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Optomax Industrial Series Liquid Level Switches General Description
The Optomax Industrial range of liquid level switches were designed to offer industrial supply voltages and outputs that can directly drive higher power loads.

The microcontroller based sensor is solid state, incorporating an infra-red LED and phototransistor which are optically coupled by the tip when the sensor is in air. When the sensing tip is immersed in liquid, the infra-red light escapes making the output change state. The sensor can detect the presence or absence of almost any liquid type; oil or water based. It is insensitive to ambient light and is not affected by foam when in air or by small bubbles when in liquid.

A range of N and P type output configurations can sink or source up to 1A at supply voltage ranges from 4.5 to 15.4Vdc or 8 to 30Vdc and can be configured to output a high or low signal in either a wet or dry state. Options for connecting to inductive loads or digital interfaces are also available.

With housing threads suitable for external sensor mounting and for use in two operating temperature ranges; Standard (-25 to 80°C) or Extended (-40 to 125°C).

Available in two chemically resistant housing materials, Polysulfone, the standard choice for most applications, or Trogamid, which is typically used in food and beverage applications.

Optomax Industrial Series Liquid Level Switches Features
? Liquid level switches that can detect almost any liquid type; oil or water based
? Choice of material; Polysulfone (standard) or Trogamid?
? Choice of threads and terminal connections

Optomax Industrial Series Liquid Level Switches Benefits
? High power
? Industrial supply voltage
? Direct load drive design

LLC200D324-002 Optomax Industrial Series Liquid Level Switches Technical Specifications

Supply voltage (Vs)	8V DC to 30V DC
Supply current (ls)	7.5mA max. (Vs = 30V DC)
Output sink and source current (lout)	1A
Operating temperatures	Standard: -25°C to +80°C
Storage temperatures	Standard: -30°C to +85°C
Housing material	Polysulfone
Housing Type	M12x1
Output Type	N-Type with 10kΩ pull-up
Sensor termination	20AWG, 250mm PTFE wires, 8mm tinned

LLC200D324-002 Optomax Industrial Series Liquid Level Switches Output Values

Output Voltage (Vout):	lout = 1A
Vs = 8 ~ 30V DC
Output High	Vout = Vs - 1.8V max

Optomax Industrial Series Liquid Level Switches Order Information
Generate your specific part number using the convention shown below. Use only those letters and numbers that correspond to the sensor and output options you require — omit those you do not.
