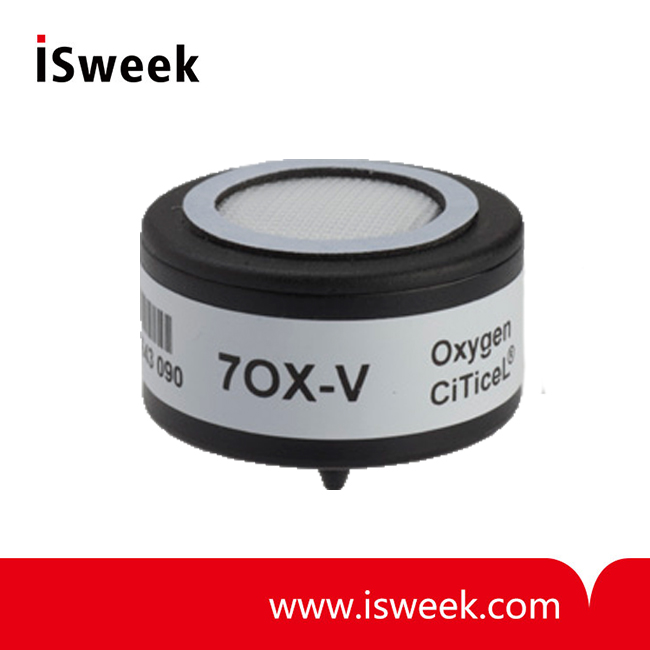

Oxygen（O2）Gas Sensor - 7OXV

? Robust, industry standard 7-Series packaging
? Compact size

Model Number: 7OXV
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

7OXV Oxygen Gas Sensor Key Features and Benefits：

? Robust, industry standard 7-Series packaging

? Compact size

7OXV Oxygen Gas Sensor Technical Specifications：

MEASUREMENT
Technology	Electrochemical
Measurement Range	0-25% vol. O₂
Maximum Overload	30% vol. O₂
Output Signal*	0.195 - 0.25 mA in Air
Response Time (T90)*	<15 Seconds
Offset (3 minutes N2)*	<0.5% vol. O₂
Linearity	Can be considered linear in many cases. See Operating Principles (OP-02) for further details.
ELECTRICAL
Recommended Load Resistor	100 ?
MECHANICAL
Weight	<34 g
Casing Material	ABS
ENVIRONMENTAL
Operating Temperature Range	-20°C to +50°C
Recommended Storage Temp	0°C to 20°C
Temperature Coefficient	0.2% signal / °C
Absolute Pressure Range	Atmospheric ± 10%
Differential Pressure Range	40 mBar maximum
Pressure Coefficient	<0.02% signal / mBar
Relative Humidity Range	Intermittent：0 to 99%RH non-condensing
Relative Humidity Range	Continuous：15 to 99%RH non-condensing
LIFETIME
Long Term Output Drift*	<5% signal / year
Expected Operating Life	2 years in air
Storage Life	6 months in original packaging

* Specifications are valid at 20°C, 50% RH and 1013 mBar, using City Technology recommended circuitry. Performance characteristics outline the performance of sensors supplied within the first 3 months. Output signal can drift below the lower limit over time.
