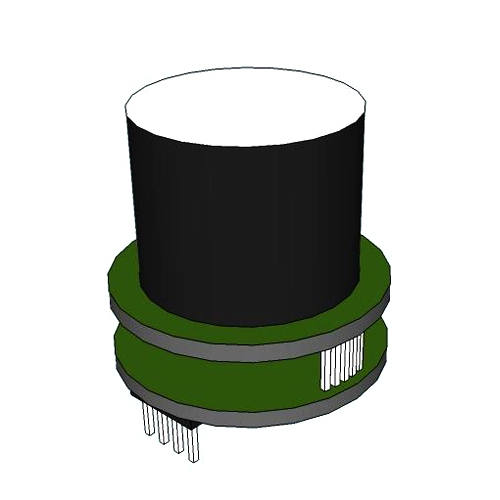

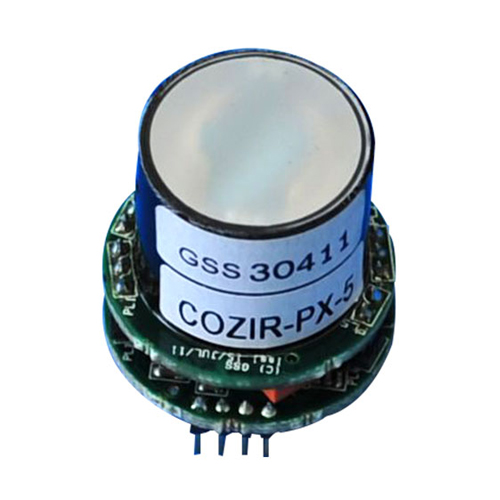

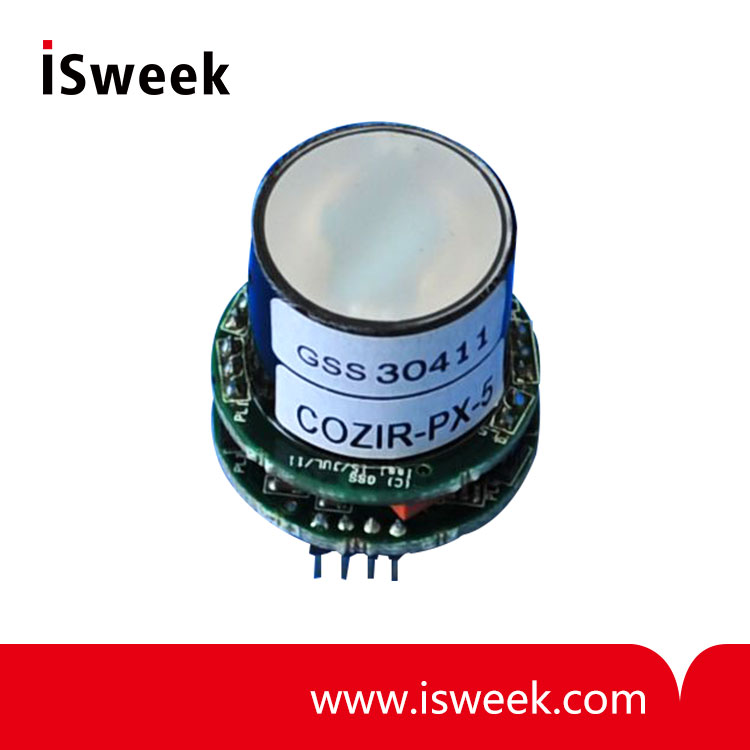

Probe Type NDIR CO2 Sensor - COZIR-Probe

? Ultra-low Power 3.5mW
? Measurement ranges from 5% to 100%
? Accuracy?: ±70 ppm +/- 5% of reading?
? 3.3V supply.
? Peak current only 33mA.
? Optional Temperature and Humidity Output

Model Number: COZIR-Probe
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Probe Type NDIR CO2 Sensor Carbon Dioxide Sensor Summary

COZIR series is an ultra low power (3.5mW), high performance CO2 sensor, ideally suited for battery operation, portable instruments or solar powered applications. Based on GSS IR LED and Detector technology, and innovative optical designs, the COZIR offers the lowest power NDIR sensor available. COZIR is a third generation product from GSS - leaders in IR LED CO2 sensing.

? Ultra-low Power 3.5mW
? Measurement ranges from 5% to 100%
? 3.3V supply.
? Peak current only 33mA.
? Optional Temperature and Humidity Output

Probe Type NDIR CO2 Sensor Carbon Dioxide Sensor Specifications

General Performance
Warm-up Time	< 10s
Operating Conditions	0°C to 50°C (standard) -25°C to 55°C (extended range) 0 to 95% RH, non-condensing
Recommended Storage	-30°C to +70°C
CO2 Measurement
Sensing Method	Non-dispersive infrared (NDIR) absorption Patented Gold-plated optics Patented Solid-state source and detector
Sample Method	Diffusion
Measurement Range	0-5%,0-20%,0-60%,0-100%
Accuracy	±70 ppm +/- 5% of reading
Non Linearity	< 1% of FS
Pressure Dependence	0.13% of reading per mm Hg in normal atmospheric conditions.
Operating Pressure Range	950 mbar to 10 bar
Response Time	4 secs to 2 mins (user Configurable) Reading refreshed twice per second.
Electrical/Mechanical
Power Input	3.2 to 5V. (3.3V recommended). Peak Current 33mA Average Current <1.5mA
Power Consumption	3.5 mW

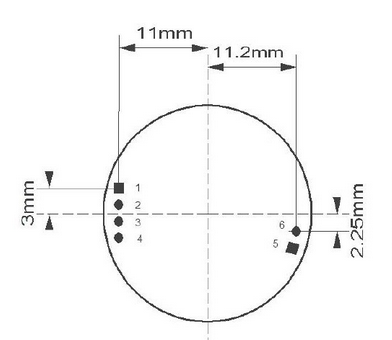

Dimensions and Wiring Connections	412mm header. 212mm header(NC)
