Product Specification

MS5911 - Safety PAT Tester

The Safety Pat Plus is a handheld battery powered unit suitable for carrying out electrical safety tests.Stores 300 test results and can be battery & mains powered. The instrument is capable of testing surge protected equipment & can test 110V, 230V  appliances.

MS5911 Safety PAT Tester Features
? Auto power off
? Data Logging 300 groups
? Safety CLASS I
  - Grounding / Insulation resistance / Leakage current
? Safety CLASS II
  - Insulation resistance / Leakage current
? Cord test
  - Grounding / Insulation resistance / Leakage current
? Polarity test
? Power socket test AC 110V/230V ±15%
? Low battery detection
? Backlight
? MS5911A - USA type
? MS5911D - EU type

MS5911 Safety PAT Tester General Specifications
? Power Supply: DV12V or 8*1.5V AA Batteries
? Product Size: 204mm x 155mm x 76mm
? Product Weight: 1270g/2.8lb
? Certificate: CE / RoHS
? Safety Rating: CAT II 300V

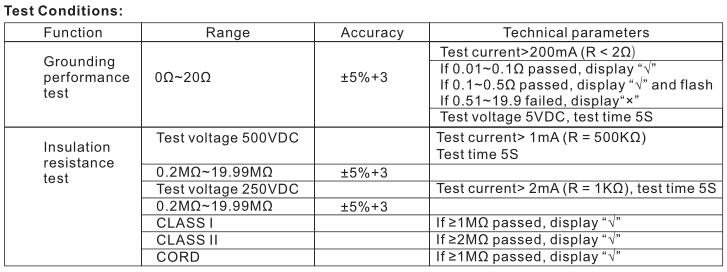

MS5911 Safety PAT Tester Technical Specifications
