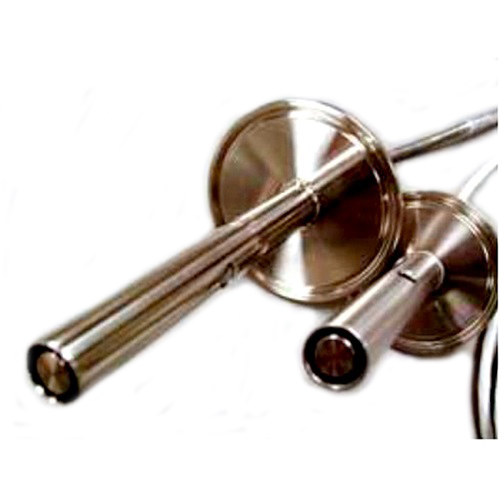

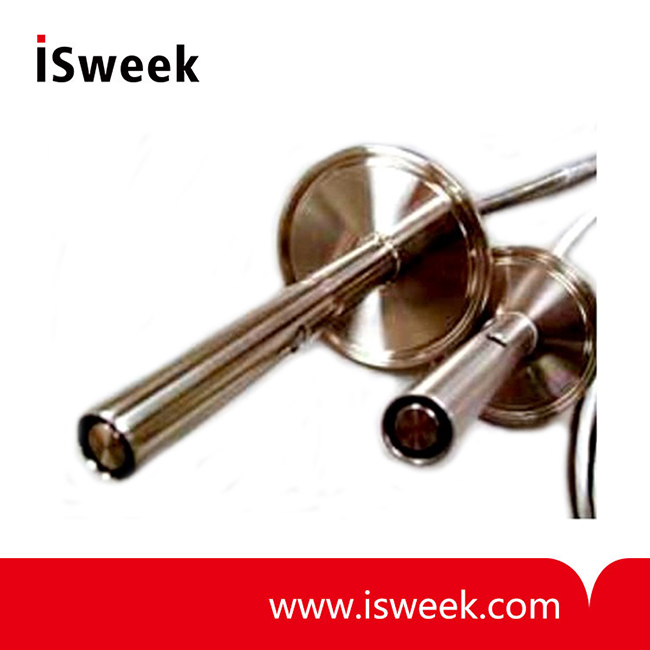

Sanitary Flange Mounted Conductivity/Resistivity Sensor - CS615/CS620 Series

? Cell Constants: 0.01, 0.1, 1.0?
? Max Temperature?: 121 Degrees C?
? Max Pressure?: 100 psig?
? All 316 stainless steel construction
? Available with automatic temperature compensation
? Cell constant values of 0.01, 0.1 and 1.0
? 1"-1.5" and 2" Tri clamp flanges available
? Sensors are steam sterilizable

Model Number: CS615/CS620 Series
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

CS615/CS620 Series Conductivity/Resistivity Sensors with Sanitary Flange Mounting

Item No.: CS615, CS615TC, CS620, CS620TC

CS615/CS620 Series Conductivity Sensors Features
? All 316 stainless steel construction
? Available with automatic temperature compensation
? Cell constant values of 0.01, 0.1 and 1.0
? 1"-1.5" and 2" Tri clamp flanges available
? Sensors are steam sterilizable

CS615/CS620 Series Conductivity Sensors Description

Sensorex offers durable 316 stainless steel body conductivity and resistivity sensors with Tri clamp flanges for sanitary installation. The sensor is designed to withstand CIP and steam sterilization processes.

Two models are available for 1"-1.5" Tri clamps or 2" Tri clamp flanges. Cell constants available are 0.01, 0.1 and 1.0. Optional temperature compensators are available to mate with specific makes and models of instrumentation. Cable is ten feet long and supplied with tinned wire terminations. Longer cable lengths are available at an additional cost. Please contact Sensorex with your requirements.

CS615/CS620 Series Conductivity Sensors Specifications

Cell Constants	0.01, 0.1, 1.0
Wetted Materials	316 stainless steel, Teflon, EPDM
Max Temperature	121 Degrees C
Max Pressure	100 psig
Temp Comp	(User specified temperature elements) Pt1000, Pt100
Cable Length	10ft standard, tinned wire terminations (Longer length available at addtional cost, contact Sensorex)
Process Connection	Sanitary flange
Surface Finish	min RA20

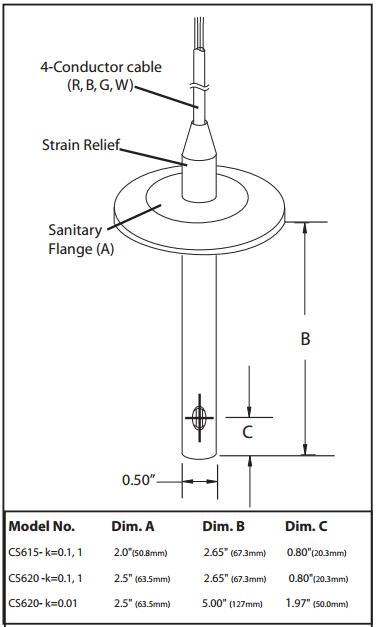

Designed for sanitary flange installations into 1-1.5" or 2" Tri clamp flanges. All 316SS construction with Teflon insulators.

CS615/CS620 Series Conductivity Sensors Ordering Information
Standard cable length is 10ft with tinned lead terminations. If longer cable length is required, specify cable length (if not 10ft). Also specify temperature compensation value and cell constant (K=0.01 or 0.1 or 1.0) and when ordering.

Sensors
CS615	1" or 1.5" Conductivity sensor
CS615TC	1"or 1.5" Conductivity sensor with ATC
CS620	2" Conductivity sensor
CS620TC	2" Conductivity sensor with ATC
TC codes: PT1 = PT100 RTD, P1K = PT1000 RTD Calibration Solutions-Quarts
TDS15	15ppm/23.8uS
TDS30	30ppm/46.7uS
TDS1000	1000ppm/1417uS
TDS1500	1500ppm/2060uS
TDS3000	3000ppm/3900uS
TDS5687	5687ppm/7000uS
TDS9523	9523ppm/10000uS
Many other value solutions are available. Contact Sensorex for a complete listing.
