Three-electrode Electrochemical Gas Evaluation Module For FECS-series Sensors - EM-FECS(B)
Compatible with all FECS-series sensors

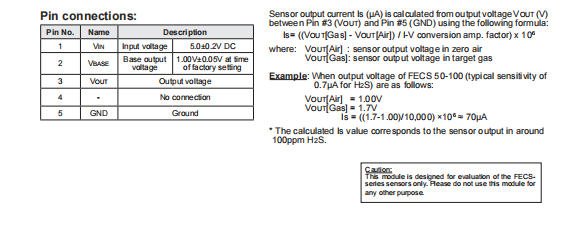

Converts sensor output current to voltage output
Selectable load resistors dependeing on sensor model
Anti-polarization circuit during power OFF period
- Model Number: EM-FECS(B)
- Quantity:
- - +

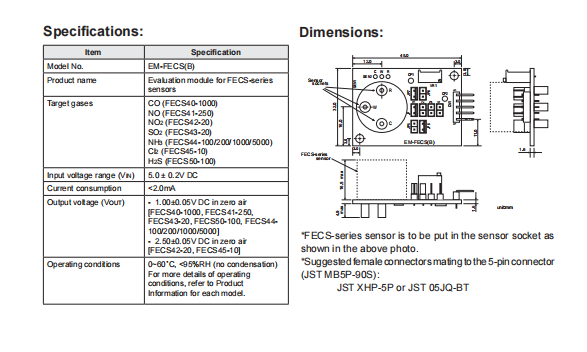

Product Specification
The EM-FECS(B) evaluation module is designed to perform the testing and evaluation of the three-electrode electrochemical gas sensors in the FECS-series. Since the output voltage (VOUT) corresponding to the sensitivity characteristics can be obtained, the characteristics of the FECS sensor can be easily evaluated.
Anti-polarization circuit during power OFF period
*2The main function of this module is to simply convert sensor output current into voltage output without? temperature compensation.
