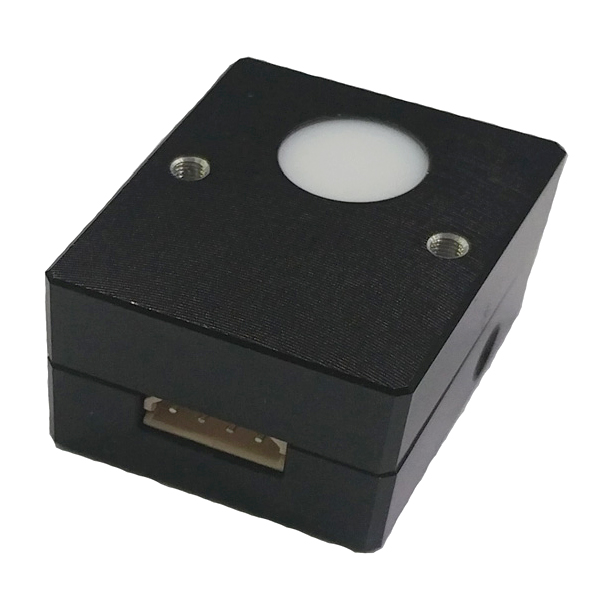

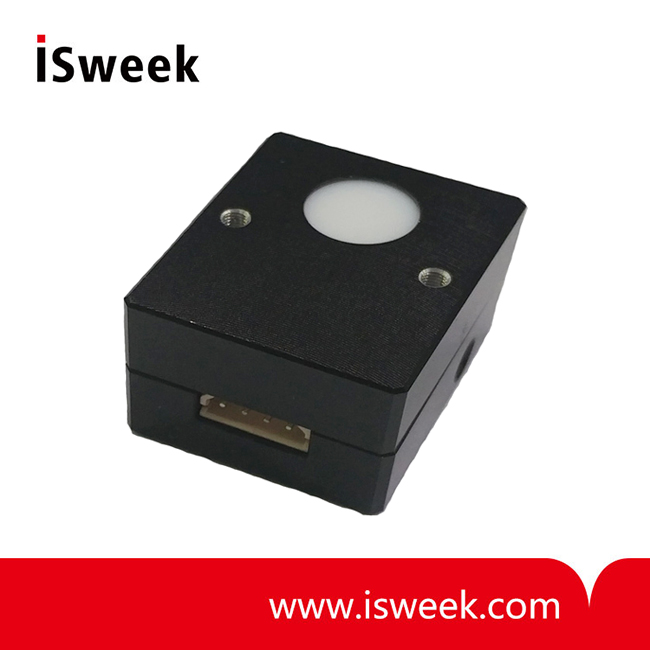

UV Sensor Probe - GUVx-T1xGC-2LA8
- Single Supply Voltage, Analog Voltage Output
- Case diamension: 30 x 36 x 23mm
- Supply Voltage: 9~24Vdc
- Detection Power Range: 100~10,000mW/cm2
- Response Time: 10ms
- Detection Range:
GVBL-T12GC-2LA8 : 330~445nm
GUVV-T10GC-2LA8 : 230~395nm
- Model Number: GUVx-T1xGC-2LA8
- Data Sheet:
- Quantity:
- - +
Product Specification
GUVx-T1xGC-2LA8 UV Sensor Probe Feature
- Single Supply Voltage, Analog Voltage Output
- Air Environment
- Adjustable Detection Power Range (Variable Resistor)
GUVx-T1xGC-2LA8 UV Sensor Probe Application
- UV Lamp, LED monitoring
- Strong UV irradiation monitoring(Max 20W/cm2)
GUVx-T1xGC-2LA8 UV Sensor Probe Absolute Maximum Ratings
|
Parameter |
Symbol |
Value |
Unit |
Remark |
||
|
Min. |
Typ. |
Max |
||||
|
Storage Temperature |
Tst |
-40 |
|
90 |
°C |
|
|
Operating Temperature |
Top |
-30 |
|
85 |
°C |
|
GUVx-T1xGC-2LA8 UV Sensor Probe Electro-Optical Characteristics (at 25°C)
|
Parameter |
Symbol |
Value |
Unit |
Remark |
|||
|
Min. |
Typ. |
Max. |
|||||
|
Supply Voltage |
Vcc |
9 | 12 | 24 | Vdc |
|
|
|
Supply Current |
IQ |
|
0.05 |
|
mA |
|
|
|
Detection Range |
GVBL-T12GC-2LA8 |
λ |
330 |
|
445 | nm |
10% of Max |
|
GUVV-T10GC-2LA8 |
λ |
230 |
|
395 | nm | ||
|
Output Voltage |
Vout |
0 |
|
5 | V |
Vcc=12V |
|
|
Detection Power Range |
P | 100 |
|
10,000 | mW/cm2 |
|
|
|
Response Time |
T |
|
10 |
|
ms |
|
|
