0 - 100mV Output Gage and Absolute Pressure Sensor - MEAS 154BC

? O-Ring Mount
? -20oC to +85oC Compensated Temperature
? 1.0% Interchangeable Span
1. (provided by gain set resistor)
? Solid State Reliability
? ±0.3% Pressure Non Linearity
? Titanium Option

Model Number: MEAS 154BC
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

154BC Pressure Sensor Specifications
? Low Cost
? 316L Stainless Steel or Titanium
? 19mm Diameter Package
? 0 - 100mV Output
? Gage and Absolute
? Wide Compensated Temperature Range

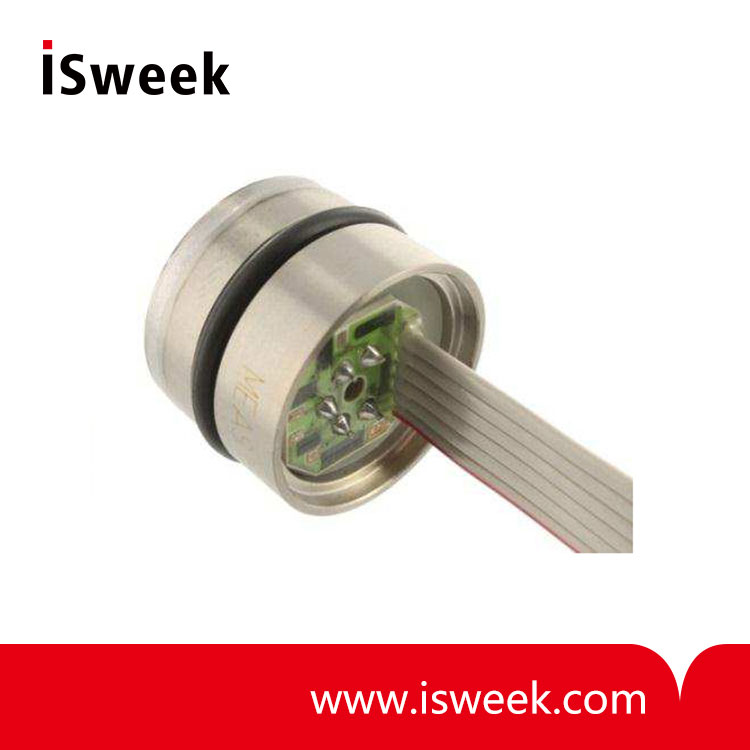

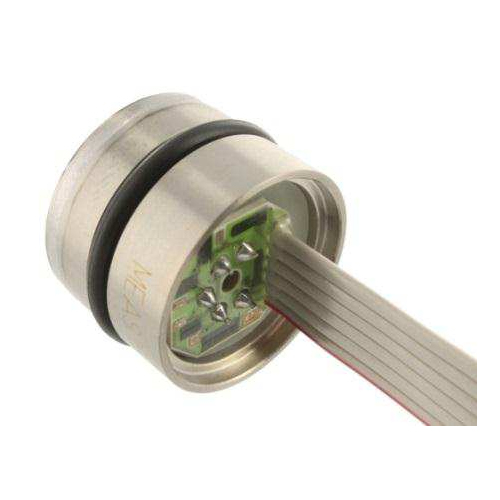

The 154BC is a 19mm small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel or ASTM Grade 2 CP titanium housing. The 154BC is a low cost unit designed without a header for o-ring mounting and OEM applications where compatibility with corrosive media is required. The titanium option offers greater resistance to corrosive materials and harsh cleaning chemicals, opening the range of its application use to things such as dialysis machines and salt/brackish water measurements.

The sensing package utilizes silicone oil to transfer pressure from either a 316L stainless steel or titanium diaphragm to the sensing element. A ceramic substrate is attached to the package that contains laser-trimmed resistors for temperature compensation and offset correction. An additional laser-trimmed resistor is included which can be used to adjust an external differential amplifier and provide span interchangeability to within ±1%.

Please refer to the 154N uncompensated and constant voltage datasheets for more information on different features of the 154.

154BC Pressure Sensor Features
? O-Ring Mount
? -20oC to +85oC Compensated Temperature
? 1.0% Interchangeable Span
1. (provided by gain set resistor)
? Solid State Reliability
? ±0.3% Pressure Non Linearity
? Titanium Option

154BC Pressure Sensor Applications
? Medical Instruments (Dialysis Machines)
? Process Control
? Fresh, Waste, Salt and Brackish Water Measurements
? Refrigeration/Compressors
? Pressure Transmitters
? Hydraulic Controls

154BC Pressure Sensor Performance Specifications
Supply Current: 1.5 mA
Ambient Temperature: 25°C (unless otherwise specified)

PARAMETERS	MIN	TYP	MAX	UNITS
Span	75	100	150	mV
Zero Pressure Output	-1.0	0	1.0	mV
Pressure Non Linearity	-0.30		0.30	%Span
Pressure Hysteresis	-0.20		0.20	%Span
Repeatability		±0.02		%Span
Input Resistance	2.0	3.5	5.8	k?
Output Resistance	3.0		6.0	k?
Temperature Error - Span	-1.0		1.0	%Span
Temperature Error - Offset	-1.0		1.0	%Span
Thermal Hysteresis - Span	-0.25	±0.05	0.25	%Span
Thermal Hysteresis - Offset	-0.25	±0.05	0.25	%Span
Long Term Stability - Span		±0.10		%Span/Year
Long Term Stability - Offset		±0.25		%Span/Year
Supply Current	0.5	1.5	2.0	mA
Output Load Resistance	5			M?
Insulation Resistance (50Vdc)	50			M?
Output Noise (10Hz to 1kHz)		1.0		uV p-p
Response Time (10% to 90%)		0.1		ms
Overload Pressure			2X	Rated
Burst Pressure			3X	Rated
Compensated Temperature	-20		+85	°C
Operating Temperature	-40		+125	°C
Storage Temperature	-50		+125	°C
Media - Pressure Port	Liquids and Gases compatible with 316L Stainless Steel or ASTM Grade 2 CP Titanium

154BC Pressure Sensor Ordering Information

154BC	-	S	-	100PG		-	C
Model	-	Material	-	Pressure Type and Range		-	Electrical
154BC	-	S = 316L Stainless Steel T = ASTM Grade 2 CP Ti	-	015PG 030PG 050PG 100PG 300PG	007BA 012BA 018BA 028BA		P = Solder Pads R = Ribbon Cable C = Cable w/ Connector
