1 psi PC Board Mountable Pressure Sensor - MEAS 13 and 43

? Pressure Range: 0 - 1 psi
? 0-100 mV Output
? Response Time (10% to 90%): 1.0ms
?? ?TO-8 Package
? ?0oC to 50oC Compensated Temperature Range
? ?±0.3% Non Linearity
? Pressure Hysteresis: ±0.05 %Span
? Operating Temperature: -40 ~ +125°C

Model Number: MEAS 13 and 43
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

13 AND 43 Pressure Sensor

The 13 and 43 are temperature compensated, piezoresistive silicon pressure sensors packaged in a TO-8 configuration. It provides excellent performance and long-term stability.

Integral temperature compensation is provided over a range of 0-50°C using laser-trimmed resistors. An additional laser-trimmed resistor is included to normalize pressure sensitivity variations by programming the gain of an external differential amplifier. This provides sensitivity interchangeability of ±1%.

Please refer to the 13 and 43 standard datasheets for information on products with operating pressures greater than 1 psi.

MEAS 13 and 43 Pressure Sensor Features
? PC Board Mountable Pressure Sensor
? 0-100 mV Output
? Current Excitation
? Gage Pressure
? Temperature Compensated
? TO-8 Package
? 0°C to 50°C Compensated Temperature Range
? ±0.3% Non Linearity
? 1.0% Interchangeable Span (provided by gain set resistor)
? Solid State Reliability

MEAS 13 and 43 Pressure Sensor Applications
? Medical Instruments
? Process Control
? Factory Automation
? Leak Detection
? Level Detection

MEAS 13 and 43 Pressure Sensor Performance Specifications
Supply Current: 1.5mA
Ambient Temperature: 25°C (unless otherwise specified)
Pressure Range 0 - 1 psi

PARAMETERS	Min	Typ	Max	Units	Notes
Span	65	100	150	mV	1
Zero Pressure Output	-2		2	mV
Pressure Non Linearity	-0.3	±0.2	0.3	%Span	2
Pressure Hysteresis	-0.05	±0.01	0.05	%Span
Input & Output Resistance	2500	4400	6000	?
Temperature Error – Span	-1.0	±0.5	1.0	%Span	3
Temperature Error – Zero	-1.0	±0.5	1.0	%Span	3
Thermal Hysteresis – Zero		±0.1		%Span	3
Supply Current		1.5	2.0	mA
Response Time (10% to 90%)		1.0		ms	4
Output Noise (10Hz to 1kHz)		1.0		μV p-p
Insulation Resistance (50 Vdc)	50			M?	5
Long Term Stability (Offset & Span)		±0.2		%Span	6
Pressure Overload			10	psi
Compensated Temperature	0		50	°C
Operating Temperature	-40		+125	°C
Storage Temperature	-50		+150	°C
Weight			3	grams
Solder Temperature	250oC Max 5 Sec.
Media	Non-Corrosive Dry Gases Compatible with Silicon, Pyrex, RTV, Gold, Nickel, and Aluminum

Notes
1. Ratiometric to supply current.
2. Best fit straight line.
3. Maximum temperature error between 0°C and 50°C with respect to 25°C.
4. For a zero-to-full scale pressure step change.
5. Minimum distance between case and pins.
6. Long term stability over a one year period with constant current and temperature.

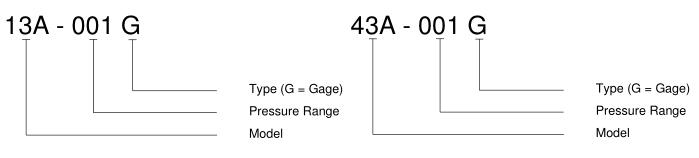

MEAS 13 and 43 Pressure Sensor Ordering Information
