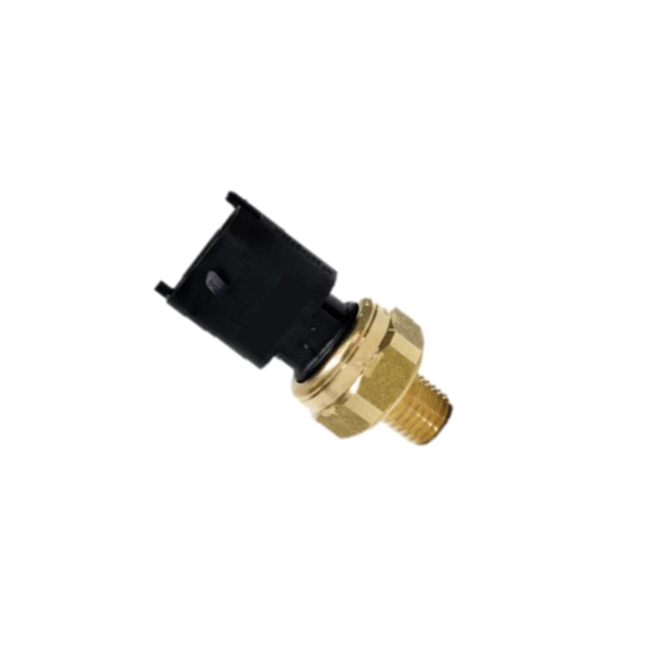

Conventional Pressure Sensor - SYP-10 Series

Analog Voltage Output
Capacitive Pressure (Absolute / Gauge)
BOSCH 3Pin Connector

Model Number: SYP-10 Series
Data Sheet:

Quantity:: - +

Mouse over image to zoom

Product Specification

Conventional Pressure Sensor SYP-10 Series Description：

The SYP-10 is a pressure measurement module based on the high universality. It is used in various industries. The SYP-10 is designed to be applied to refrigerant piping in automotive fuel systems, hydraulic systems, HVAC systems, etc.

The SYP-10 is fully compensated, and It guarantees reliable operation in harsh media such as fuels, oils, and refrigerants.

Conventional Pressure Sensor SYP-10 Series FEATURES：

Analog Voltage Output

Capacitive Pressure (Absolute / Gauge)

BOSCH 3Pin Connector

Conventional Pressure Sensor SYP-10 Series APPLICATIONS：

Automotive

? Fuel system

? Hydraulic system

? Automotive HVAC

Industrial

? HVAC

? Thermal management

? Hydraulic system

Conventional Pressure Sensor SYP-10 Series PRODUCT SPECIFICATION：

Pressure
Detection range	0～10 bar
Accuracy	±2.0 %FS
Proof Pressure	15.0 bar
Burst Pressure	20.0 bar
Electrical specification
Supply voltage	8～16V DC
Current consumption	10.0mA
Output voltage	0.5～4.5V
Environmental conditions
Operation Temperature	- 40℃ ～120 ℃
Storage Temperature	- 40℃ ～120 ℃
Size (mm)	H60×HEX24 Thread: M12×1.5
