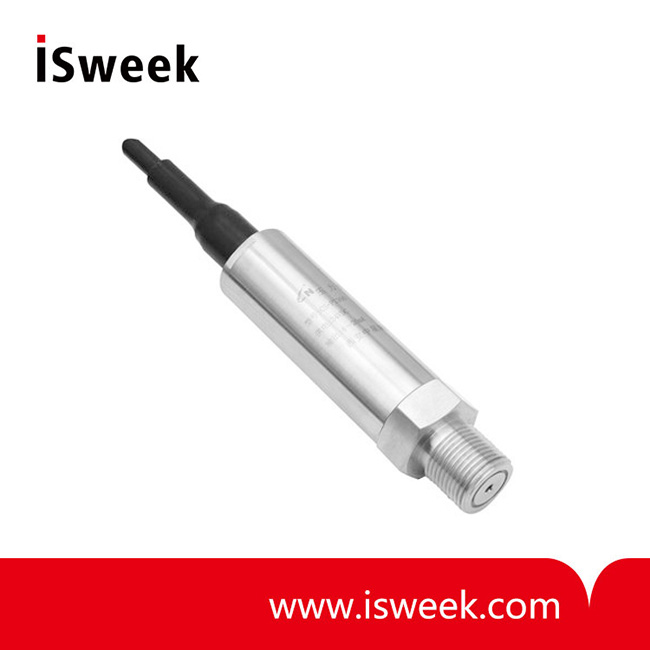

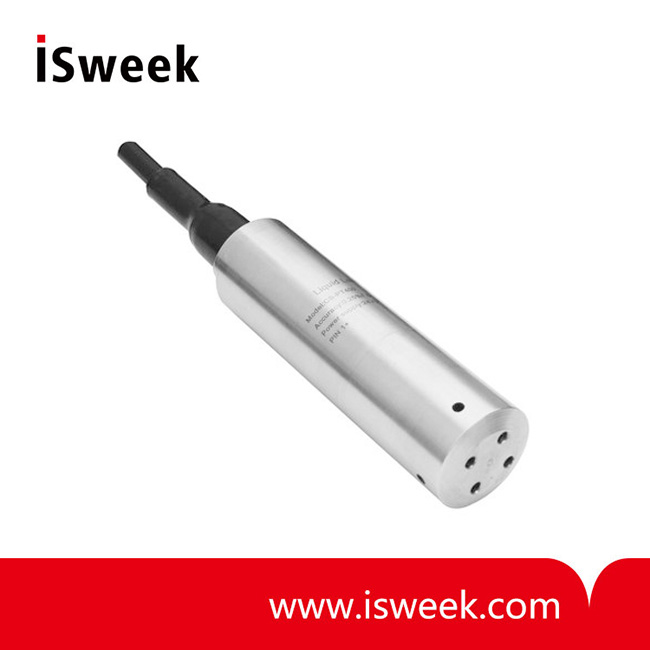

Level Transducer Embeedded Temperature - CS-WPT400

? Measure Range: 0~3...200 mH2O
? Accuracy?: ±0.5%F.S
? Operating Temprature: -40℃~85℃?
? Compensating Temprature: -10℃~70℃?
? Insulation: >100M ?@50V?
? Elec.connector: five level protection.IP68?

Model Number: CS-WPT400
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

CS-WPT400
Level Transducer Embeedded Temperature
Measuring range: 0~3......200 mH2O

CS-WPT400 Level Transducer Applications:
? Hydrological monitoring
? Frequency of water supply
? Sewage treatment

CS-WPT400 Level Transducer Technical parameters

The routine	Value				Note
Measure Range	0~3......200 mH2O				1mH2O =9.81KPa
Overload Pressure	1.5*RP(rated pressure)
Broken Pressure	3*RP(rated pressure)
Accuracy	±0.5%F.S
Stability	Typical 0.1%F.S/Y, Max 0.2%F.S/Y
Operating Temprature	-40℃~85℃
Compensating Temprature	-10℃~70℃
Medium Compatibility	Corrosive medium compatible with Cr18Ni9Ti,316L
Wires	Two-wire	Three-wire
Signal Output	4~20mA	1~5V		0.5~4.5V
Power Supply	10~30Vdc	8~30Vdc		5V(ratio)
Load Resistance	(U-10)/0.02(?)	>100k?
Insulation	>100M ?@50V
Elec.connector	five level protection.IP68
Pressure Port	Investment style, Threaded: M20×1.5, G1/4, G1/2, R1/2, NPT1/2
Pressure Form	Gauge G, Sealed Gauge S		Response Time: 10ms
EMC	EMI: EN50081-1/-2; EMS: EN50082-2
