Loop-Powered, Isolated Toroidal Conductivity Transmitter - TCSMA

? Measuring Range: 0-100,000 uS
? Sensitivity: 0.1% of span
? Repeatability : 0.2% of span
? Power Requirement: 16-35 VDC (2-wire device)
? Response Time: 5 seconds to 90% full scale
? 4-20mA isolated output, loop-powered (16-35V DC)
? Operating Temperature: -20 to 60 deg C
? Operating Humidity: 0-95% R.H. non-condensing

Model Number: TCSMA
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

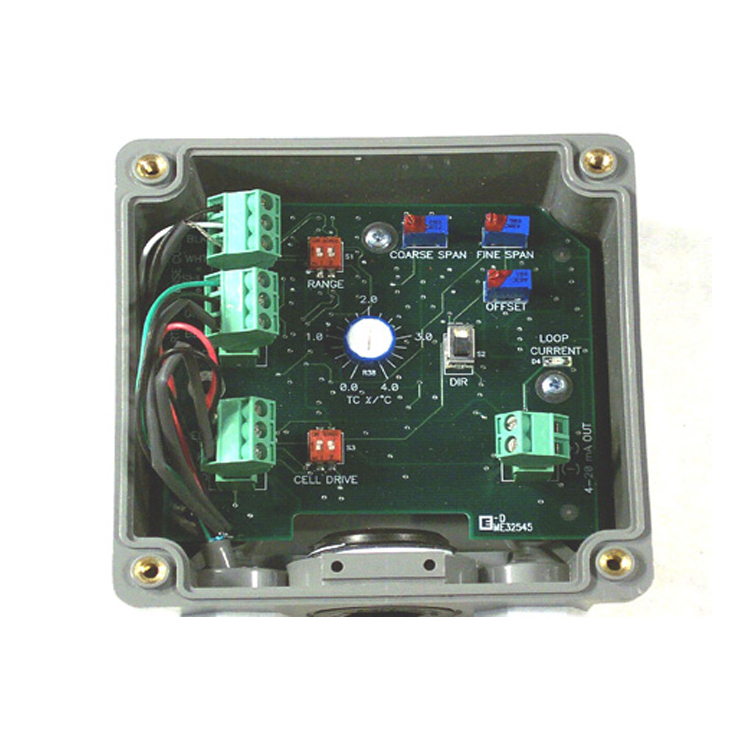

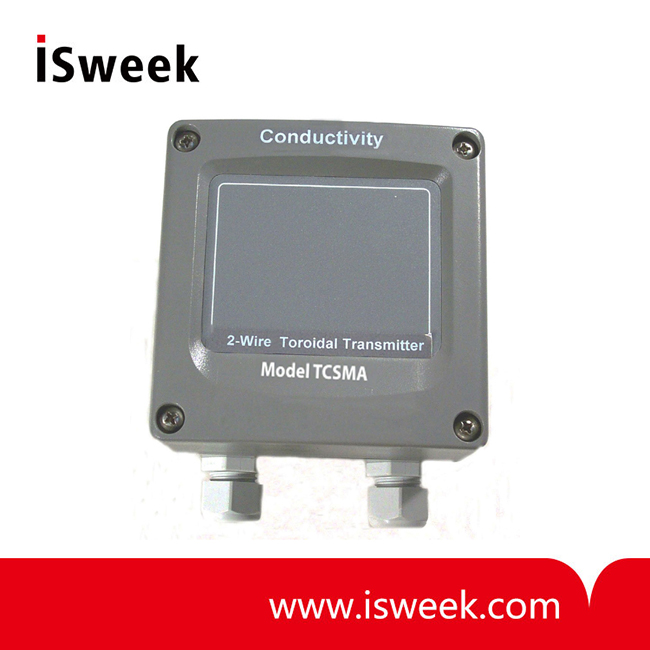

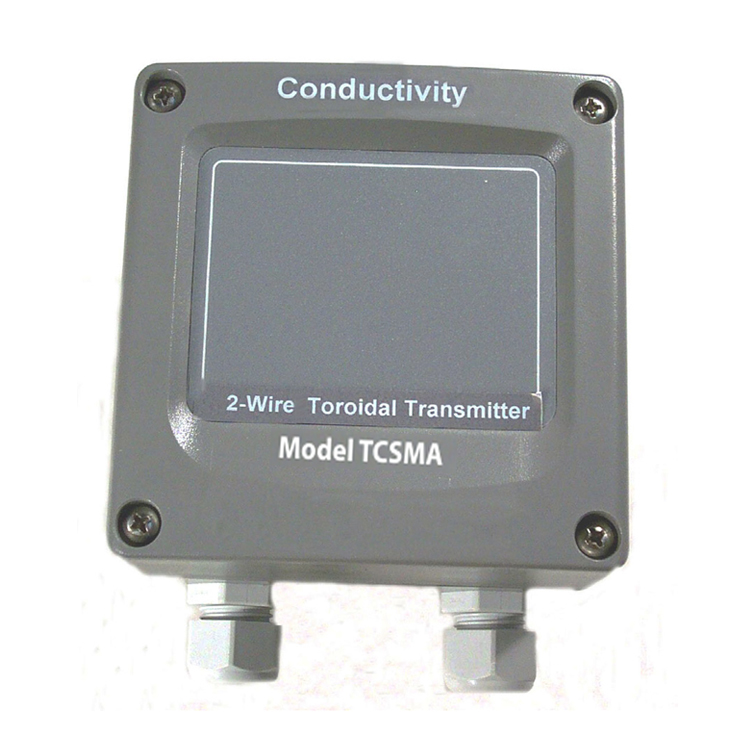

TCSMA - Loop-Powered, Isolated Toroidal Conductivity Transmitter

TCSMA Toroidal Conductivity Transmitter Features
? 4-20mA isolated output, loop-powered (16-35V DC)
? User-adjustable temperature compensation (0-4%/ deg C)
? Selectable measuring ranges
? Adjustable zero and span
? Direct/reverse operation
? Nema 4X enclosure with multiple mounting configurations

TCSMA Toroidal Conductivity Transmitter Description
The TCSMA model is designed for on-line monitoring of water treatment applications and aggressive process chemicals. This blind transmitter is ideally suited for applications where 4-20mA signals are required and reliable instrumentation is critical.

Key features include: selectable measuring ranges, adjustable temperature compensation (%/deg C), isolated output and reversible cell drive.

A Nema 4X (IP66) enclosure provides durability. A variety of mounting choices are available for Wall, Pipe or DIN Rail installation.

Pair the TCSMA with a TCS3020 toroidal sensor for trouble-free service. TCS3000 and TCS3020 sensors are offered in Noryl construction and can be mounted in a custom flow cell (FC95C) for in-line use.

TCSMA Toroidal Conductivity Transmitter Specifications-Transmitter

Measuring Range	0-100,000 uS, - preset at factory as 4-20mA
Span Range	2000-2500uS / 2500-15,00uS / 15,000-100,000uS / 100,00-1,000,000uS
Sensitivity	0.1% of span
Repeatability	0.2% of span
Non-Linearity	1% of span for span > 3000uS/cm --- 2% of span for span <3000uS/cm
Zero Drift	<1% span per month, non-cumulative
Operating Conditions	-20 to 60 deg C, 0-95% R.H. non-condensing conditions
Temperature Drift	0.06% of range/deg C, span or zero
Stability	0.2% of range per 24 hours, non-cumulative
Power Requirement	16-35 VDC (2-wire device)
Insertion	Loss 16 V DC
Output Isolation	Inherently isolated by sensor design
Enclosure	NEMA 4X (IP66) polycarbonate, wall, pipe or DIN Rail mount. Weatherproof and corrosion resistant. Dimensions = 4.4" (112mm) H x 4.4" (112mm) W x 3.5" (89mm) D.
Weight	1lb (0.45Kg)
Conduit Openings	2 each PG-9. Cord grips included.
Temperature Input	Pt1000RTD. Compensation adjustable from 0.0%/deg C to 4.0%/deg C
Maximum Cable Length	200ft. (61.0m)
Response Time	5 seconds to 90% full scale

TCSMA Toroidal Conductivity Transmitter Ordering Information

Part Number	Description
TCSMA	Blind, Loop-powered, 4-20mA toroidal conductivity transmitter (16-35VDC power supply not included)
TCS3020	Keyed Noryl toroidal conductivity sensor. Includes 20ft of cable and tinned wire terminations
FC95C	Keyed CPVC flow cell for TCS3020. Includes nut and o-ring seal.
