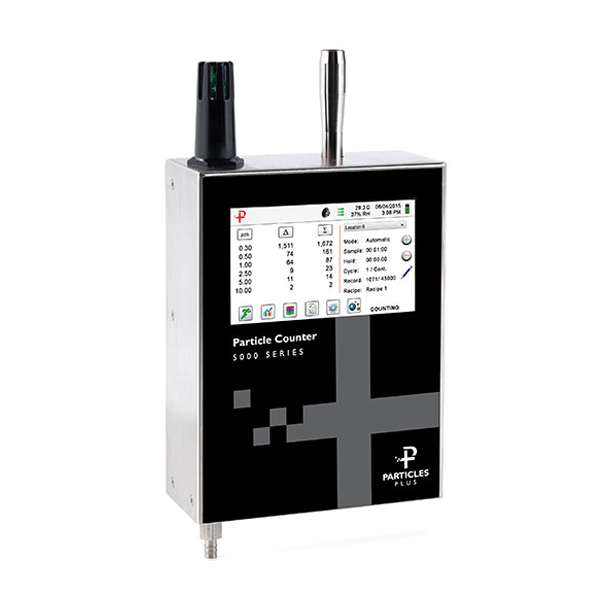

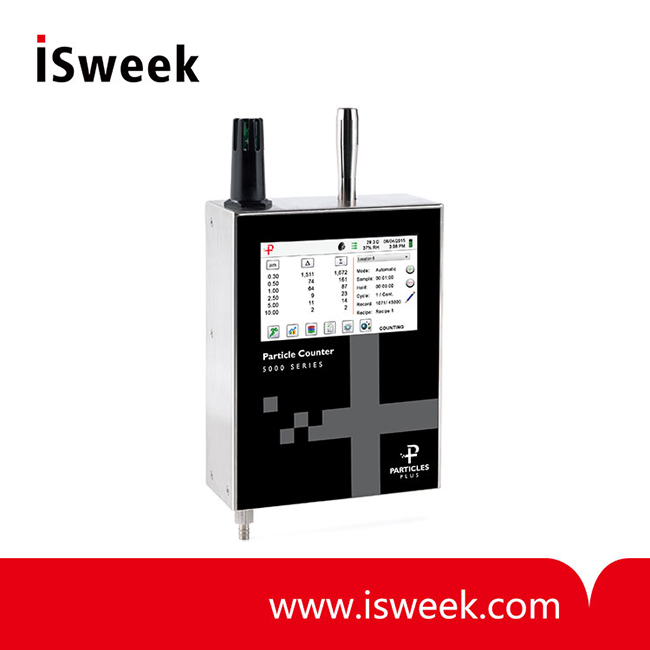

Remote Airborne Particle Counter 0.3 μm @ 0.1 CFM - 5301

? Size Range: 0.3 to 25 μm
? Size Channels: Factory calibrated at 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm
? Flow rates: 0.1 CFM (2.83 LPM)
? Concentration Limit: 4,000,000 Particles/ft3 @ 5% coincidence loss
? Counting Efficiency: 50% @ 0.3 μm; 100% for particles >0.45 μm per JIS
? Count Alarms: 1 to 9,999,999 counts
? Number of Channels: 6

Model Number: 5301
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

5301 Remote Particle Counter
0.3 μm @ 0.1 CFM with (optional) long-life internal pump
The 5301 Remote Particle Counter is the most feature-advanced remote particle counter available. Integration is easy into a building automation and cleanroom management system via Ethernet, or (optional) Wireless 802.11 b/g, RS485 or RS232.

The 5301 remote particle counters display and report 6 user-selectable particle size channels, as well as temperature and relative humidity, flow and sensor status, date of last calibration, serial number, laser on-time and date of manufacture for easy maintenance and warranty management.

This remote particle counter stores up to 45,000 time stamped particle count and environmental data records which provides data redundancy on every instrument. Particles Plus counters can be controlled and monitored remotely via web browser.

All Particles Plus counters meet ISO 21501-4 and JIS B9921. The 5301 ensures compliance with an on-board pulse height analyzer.

5301 Remote Particle Counter Features and Benefits
? Measures 0.3 μm to 25 μm
? 0.1 CFM (2.83 LPM) flow rate
? Long-life laser diode technology
? Measures up to 6 channels of simultaneous data
? Approximates mass concentration in μg/m3
? Large easy-to-use icon driven color touch screen display
? (Optional) temperature and relative humidity probe
? (Optional) internal vacuum pump
? Stores up to 45,000 sample records for on-board data redundancy
? Easy configuration and transferable from instrument to instrument
? Connect using Ethernet, USB or (optional) Wireless 802.11 b/g, RS485 or RS232.
? Static or dynamic IP address (DHCP)
? Internal audible alarm
? User-selectable channel sizes
? Complies with ISO 21501-4 and JIS B9921 standards
? Easy to clean and wipe down with minimal particle traps
? Versatile mounting options
? Seamless integration into a facility monitoring system
? Light weight stainless steel enclosure
? 2 year warranty. Extended warranties available.

5301 Remote Particle Counter Specifications?

Size Range	0.3 to 25 μm
Size Channels	Factory calibrated at 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm
Flow rates	0.1 CFM (2.83 LPM)
Concentration Limit	4,000,000 Particles/ft3 @ 5% coincidence loss
Counting Efficiency	50% @ 0.3 μm; 100% for particles >0.45 μm per JIS
Light Source	Long Life Laser Diode
Zero Count	<1 count / 5 minutes (<2 particles / ft3) (per ISO 21501-4 & JIS)
Count Modes	Automatic, manual, real-time meter, cumulative/differential, count or concentration
Count Alarms	1 to 9,999,999 counts
Calibration	NIST traceable
Display	4.3″ (10.9 cm) WQVGA (480×272) color touch screen
Vacuum Requirements	External vacuum >15” (38.1 cm) of Hg
Optional Internal Vacuum Pump	Internal pump with automatic flow control
Number of Channels	6
Custom Size Channels	Calibration for custom size channels available
Airflow	Internally monitored
Audible Alarm	Adjustable built-in alarm
Communication Modes	Ethernet and USB
Optional Communication Modes	Wireless 802.11 b/g, RS485 or RS232
Environmental Sensor	Optional temperature and relative humidity probe 32o to 122oF (0o to 50oC) ±1oF (0.5oC), 15-90% ±2% relative humidity
Alarm	Alarms on counts for all particle sizes, sensor failure, environmental sensors and flow
Standards	ISO 21501-4 and JIS B9921
Calibration	Recommended minimum once per year
External Surface	Stainless steel
Dimensions (L x W x H)	5.2” x 2.3” x 8.9” (13.3 cm x 5.8 cm x 22.6 cm) includes barb fittings
Weight	2.6 lb (1.18 kg)
Accessories	Quick start guide, operating manual on USB flash drive, isokinetic probe, power supply & cable
Optional Accessories	Printed manual, temperature relative humidity sensor, isokinetic probes, purge filter, data cable, mounting bracket and sample tubing
Buffer Memory	45,000 sample records (rotating buffer) including particle count data and environmental data
Sample Time	1 second to 99 hours
Power	110 to 240 VAC 50/60 Hz universal in-line power supply
Operating Conditions	41o to 104oF (5o to 40oC) / 20% to 95% non-condensing
Storage Conditions	32o to 122oF (0o to 50oC) / Up to 98% non-condensing
Warranty	2 Years. Extended warranties available.
