Product Specification

RPS-409A Ultrasonic Sensor
Narrow Beam Analog Distance Sensor

RPS-409A Ultrasonic Sensor?Features
? Input Voltage 20-30VDC
? Reverse Polarity Protected
? Analog Voltage Output
? Short Circuit Protected
??Temperature Compensation
? Wide Temperature Range
? Various Sensing Ranges
? LED Indicator
? Self Contained Sensor
? Quick Disconnect Connector
? PVC Housing
? Sync / Enable Input Line

RPS-409A Ultrasonic Sensor?Description

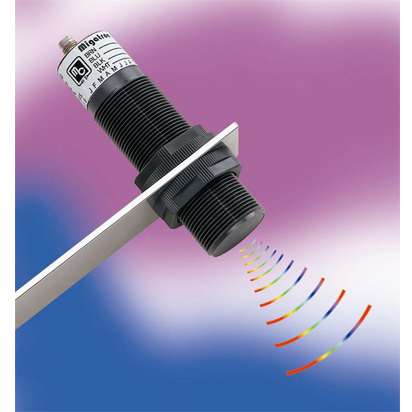

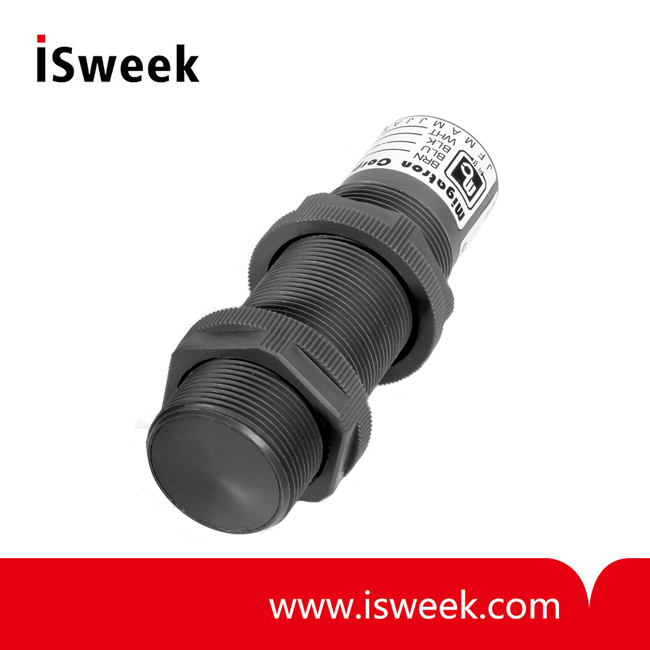

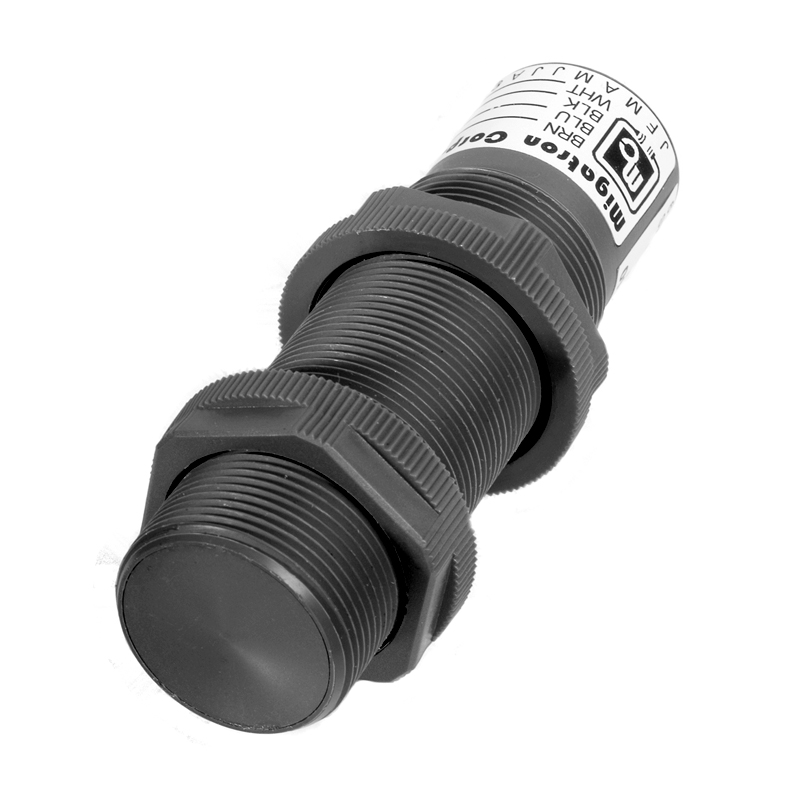

The RPS-409A analog ultrasonic sensor is a self contained sensor in a 30mm PVC barrel housing. It is powered by 20-30VDC with reverse polarity protection.

The RPS-409A has a short circuit protected analog 0 - 10VDC output. The analog voltage is a fixed volts per inch based on the maximum range of the unit. For example using the RPS-409A-80, the output is a linear 0.125V per inch. A target placed 10 inches from the sensor will result in an output signal of 1.25V or a target placed at 80 inches from the sensor will result in an output of 10V.

The RPS-409A has a temperature compensation built in to provide accurate readings throughout the entire operating range.

For set-up purposes an LED indicator is provided. The LED is Green when not detecting and changes to red as a target moves into place. The sensor is completely sealed and the connection is made using quick disconnect (QD) IP and NEMA rated cables.

Besides the input and output lines there is a Sync/Tx?line provided. This can be used for connecting multiple sensors together (Sync) to prevent cross talk, or to control when the sensor transmits (Tx).

The RPS-409A is designed to take advantage of today's PLC and computer analog input cards. The analog card chosen will determine the resolution of the system. The numerical values that are programmed into the PLC or computer will determine the zero and span.

If a set point or set points are required in the application look up the Migatron SPC-701, SPC-704, or M-1000 control products. Both the SPC-704 and M-1000 can also provide excitation power to drive the sensor.

RPS-409A Ultrasonic Sensor?Specifications
