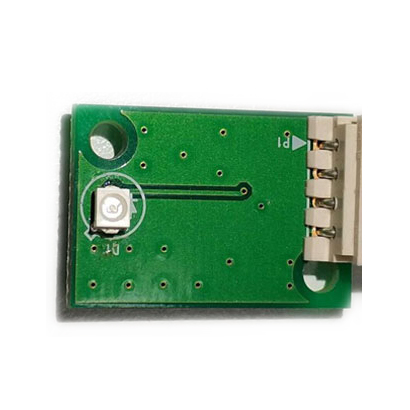

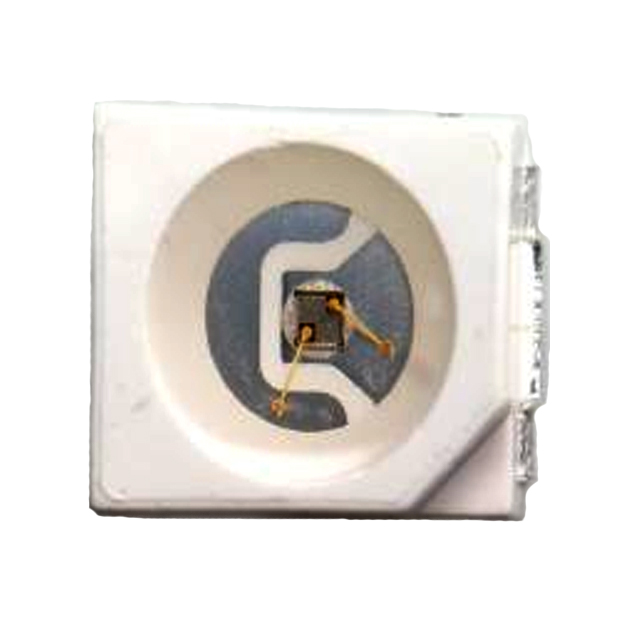

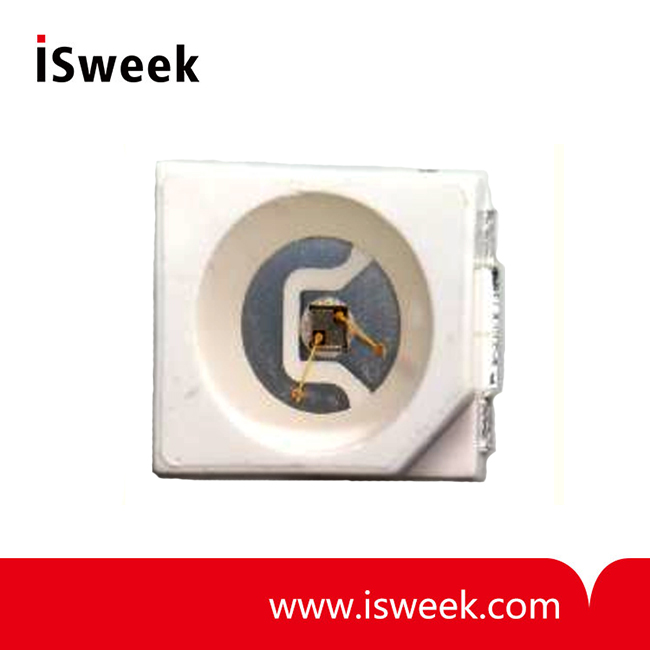

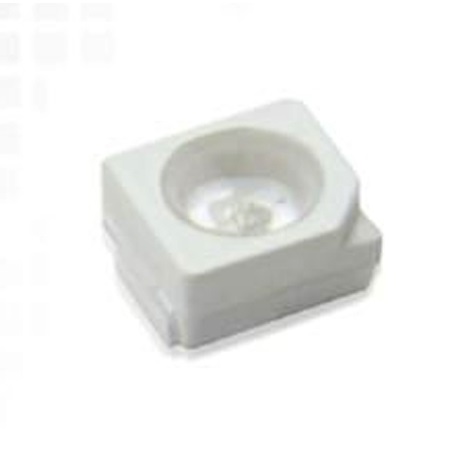

UV-A Sensor - GUVA-S12SD
- Gallium Nitride Based Material
- Schottky-type Photodiode
- Photovoltaic Mode Operation
- Good Visible Blindness
- High Responsivity & Low Dark Current
- Responsivity: 0.14A/W
- Spectral Detection Range: 240~370nm
- Model Number: GUVA-S12SD
- Data Sheet:
- Quantity:
- - +
Product Specification
1. GUVA-S12SD UV Sensor Features
Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
Good Visible Blindness
High Responsivity & Low Dark Current
2. GUVA-S12SD UV Sensor Applications
UV Index Monitoring
UV-A Lamp Monitoring

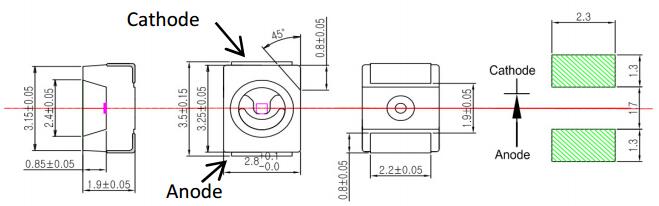

3. GUVA-S12SD UV Sensor Outline Diagrams and Dimensions
4. GUVA-S12SD UV Sensor Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 5V
Forward Current: 1mA
Optical Source Power Range: 0.1μ~100m W/cm2
Soldering Temperature: 260℃
5. GUVA-S12SD UV Sensor Characteristics (at 25℃)
Dark Current: 1nA
Temperature Coefficient: 0.08%/℃
Responsivity: 0.14A/W
Spectral Detection Range: 240~370nm
Active area: 0.076mm2
