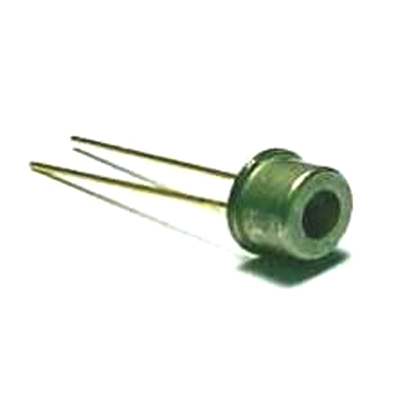

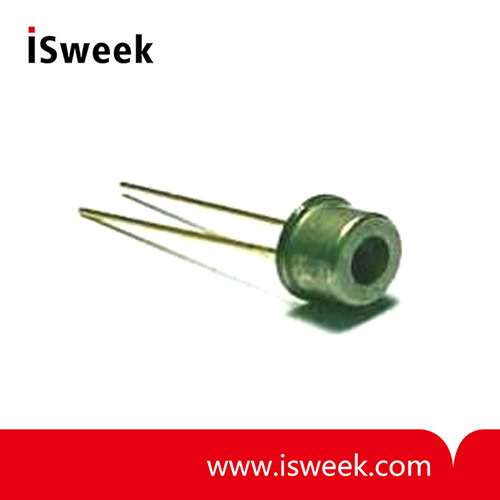

UV-A Sensor - GUVV-T10GD
- Chip size: 0.4mm;TO 46 PKG
- Dark Current(Max.): 1nA
- Spectral Detection Range: 230~395nm
- Active area: 0.076mm2
- Indium Gallium Nitride Based Material
- Schottky-type Photodiode
- Photovoltaic Mode Operation
- High Responsivity & Low Dark Current
- Model Number: GUVV-T10GD
- Data Sheet:
- Quantity:
- - +
Product Specification
1. GUVV-T10GD UV Sensor Features
Indium Gallium Nitride Based Material
Schottky-type Photodiode
Photovoltaic Mode Operation
High Responsivity & Low Dark Current
2. GUVV-T10GD UV Sensor Applications
Full UV Band Monitoring
UV-A Lamp Monitoring
Sterilization Lamp Monitoring

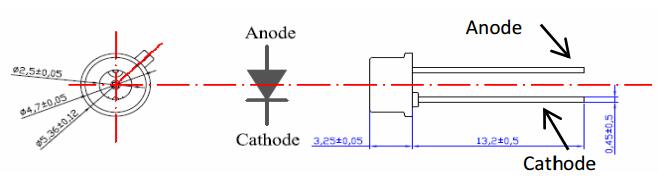

3. GUVV-T10GD UV Sensor Outline Diagrams and Dimensions
4. GUVV-T10GD UV Sensor Absolute Maximum Ratings
Storage Temperature: -40~90℃
Operating Temperature: -30~85℃
Reverse Voltage: 2V
Forward Current: 1mA
Optical Source Power Range: 0.1μ~100m W/cm2
Soldering Temperature: 260℃

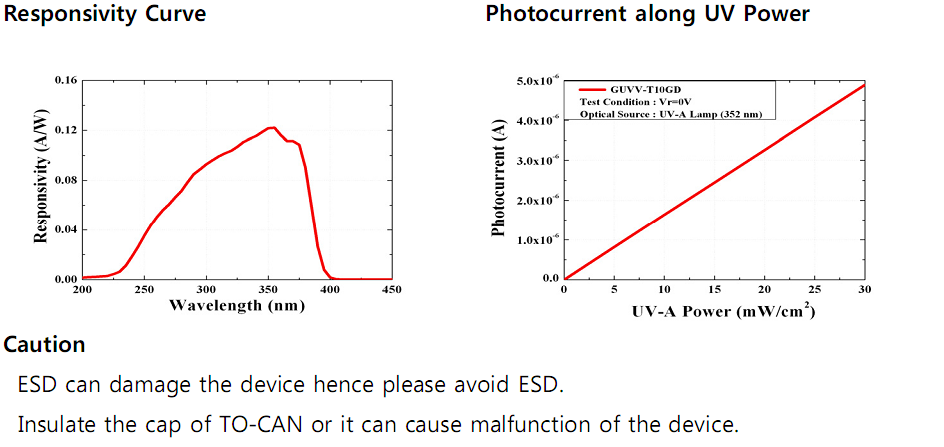

5. UV Sensor GUVV-T10GD Characteristics (at 25℃)
Dark Current(Max.): 1nA
Photo Current(Typ.): 163nA
Temperature Coefficient: 0.1%/℃
Responsivity: 0.12A/W
Spectral Detection Range: 230~395nm
Active area: 0.076mm2
