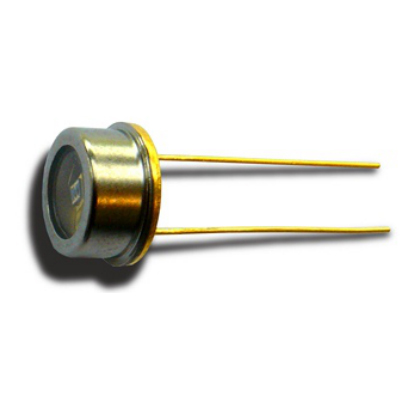

UV Photodiode - EOPD-265-0-0.3-CC
? UV range: 205 nm - 355 nm
? Chip size: 0.365 x 0.365 mm2
? Active area: 0.13 mm2
? Reverse voltage: 20V
? Operating temperature range: -40~125 ℃
? Responsivity at λ=254 nm: 0.16A/W
? Sensitivity range: 205~355 nm
- Model Number: EOPD-265-0-0.3-CC
- Data Sheet:
- Quantity:
- - +
Product Specification
Radiation
Type
Technology
Case
ultraviolet
UV-glass
SiC
TO-52
EOPD-265-0-0.3-CC UV Photodiode Description:
Low cost SiC photodiode with high spectral sensitivity in the UV range (205 nm - 355 nm), mounted inhermetically sealed TO-52 package with UV-glass window, RoHS and WEE compliant
EOPD-265-0-0.3-CC UV Photodiode Applications:
? Universal measurements in the UV range
? Sterilization lamp monitoring
? Flame monitoring
EOPD-265-0-0.3-CC UV Photodiode Maximum Ratings
Tamb = 25°C, unless otherwise specified
| Parameter | Symbol | Value | Unit |
| Chip size | A | 0.365 x 0.365 | mm2 |
| Active area | A | 0.13 | mm2 |
| Reverse voltage | VR | 20 | V |
| Operating temperature range | Tamb | -40~125 | ℃ |
| Storage temperature range | Tstg | -40~125 | ℃ |
| Acceptance angle at 50% Sλ | φ | 260 | deg. |
EOPD-265-0-0.3-CC UV Photodiode Optical and Electrical Characteristics
Tamb = 25°C, unless otherwise specified
| Parameter | Test conditions | Symbol | Min | Typ | Max | Unit |
| Dark current | VR=1V | ID |
|
10 |
|
fA |
| Peak sensitivity wavelength | VR=0V | λp |
|
265 |
|
nm |
| Responsivity at λP | VR=0V | Sλ |
|
0.18 |
|
A/W |
| Responsivity at λ=254 nm | VR=0V | Sλ |
|
0.16 |
|
A/W |
| Sensitivity range at 1% Smax | VR=0V | λmin , λmax | 205 |
|
355 | nm |
| Junction capacitance | VR=0V | CJ |
|
30 |
|
pF |
| Acceptance angle | VR=0V | ? |
|
±40 |
|
deg |
