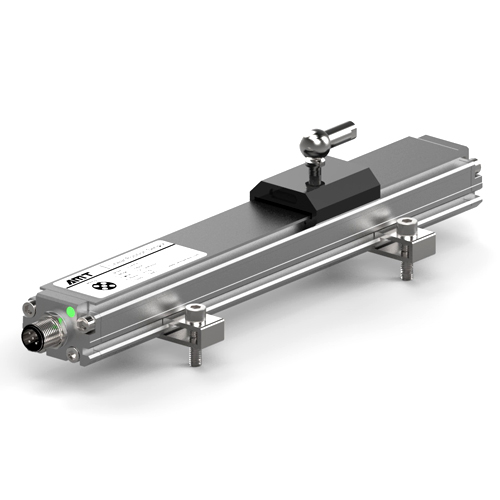

Aluminum Alloy Guide Displacement Sensor - CS series

External installation
Compact structure
Easy to use
Optional output signal: analog quantity, Start/Stop
Support Liverpool magnetic block induction distance

Model Number: CS series

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

Features:
CS series aluminum alloy guide displacement sensor, applicable to the outer installation linear displacement measurement. Product's electronic head part of the total internal in aluminium alloy profiles inside, supporting magnetic slider can, even if the whole sliding block accident beyond range will not damage sensor, support Liverpool magnetic block induction distance (farthest up to 12 mm), suitable for vibration large nc equipment position measurement. External installation, compact structure, easy to use.

Optional output signal including: analog quantity, Start/Stop, etc., can be widely used in all kinds of CNC machine tools, such as stamping machinery, building materials machinery, woodworking machinery, etc.

Products Data:

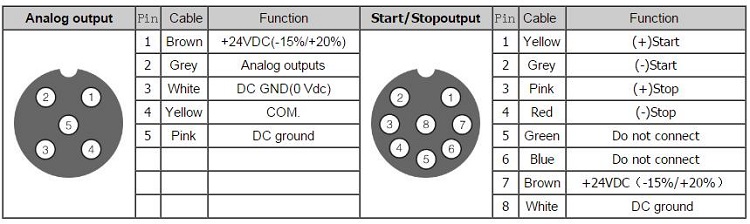

	Analog output	Start/Stop output
Parameters	Specifications	Specifications

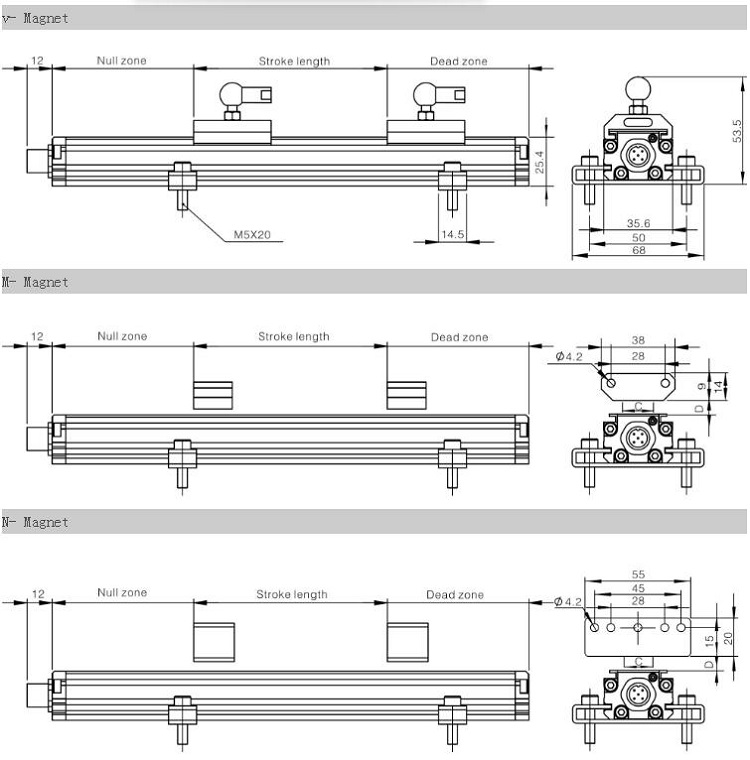

Stroke lengths	50-2500mm	50-3000mm
Out put	4~20mA,0~10V	Start/Stop
Resolution	12bit D/A	0.1mm / 0.01mm / 0.005mm
Linearity	< ±0.02%F.S.	< ±0.02%F.S.
Repertability	<±0.002%F.S.	< ±0.002%F.S.
Frequency response	Range related	Range related
Input voltage	24VDC (-15/+20%)
Operating temperature	- 40℃ ~ +85℃
Protection	IP65
Thread	Clamp , M5X20
