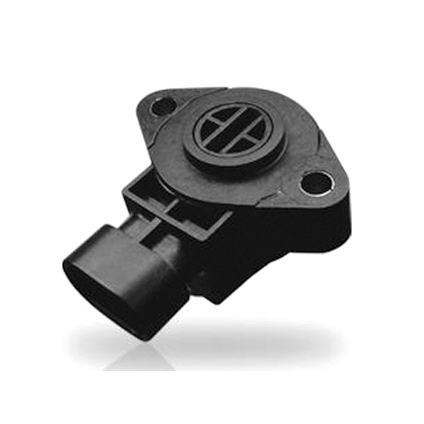

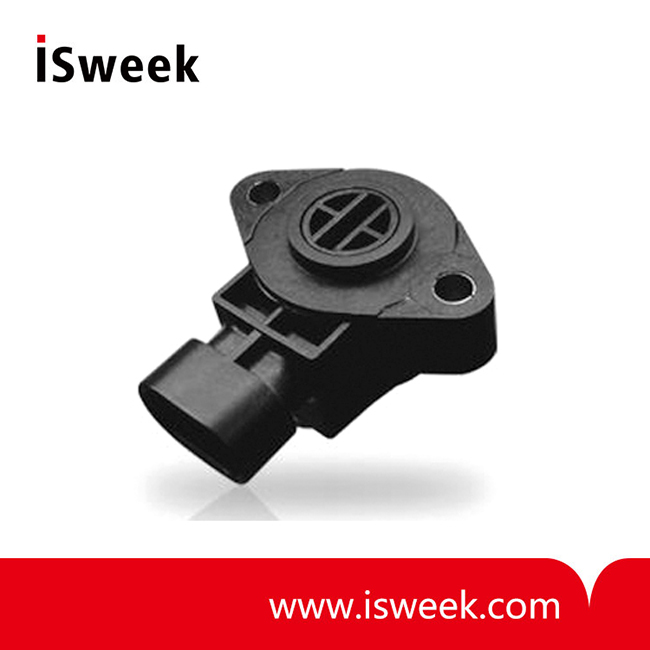

One-piece Intrinsically Linear Angle Position Sensor - AN101101

? Patented intrinsically linear angle position sensor (ILAPS)
? Return spring provides resistance to CCW motion
? Vibration: 1g RMS axial, 5g RMS horizontal, 8g RMS vertical; 20 Hz to 2 kHz
? Operating Temperature: -40 to 125°C (-40 to 257°F)
? Fully encapsulated electronics
? RoHS compliant
? IP67

Model Number: AN101101
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

AN1 Series Angle Position Sensor Description
The AN1 Series sensors are One-piece, intrinsically linear contact angle position sensors. The sensors operate through the use of Hall Effect technology with magnetic fields generated by permanent magnets. They provide a linear change in voltage output (ratiometric to the input voltage) corresponding to an angular rotation of the input shaft.

AN1 Series Angle Position Sensor Features
? Patented intrinsically linear angle position sensor (ILAPS)
? Magnet/sensor orientation provides linear output from 5? to 85? of rotation without the need for electrical compensation
? Return spring provides resistance to CCW motion
? Fully encapsulated electronics
? RoHS compliant
? IP67

AN1 Series Angle Position Sensor Typical Applications
? Implement (fork lift, agricultural trailer hitch, etc.) position sensing
? Steer, throttle by wire
? Gear selection
? Zero-contact encoder alternative

AN1 Series Angle Position Sensor Environmental Specifications

Vibration	1g RMS axial, 5g RMS horizontal, 8g RMS vertical; 20 Hz to 2 kHz
Operating Temperature	-40 °C to 125 °C (-40 °F to 257 °F)
Storage Temperature	-40 °C to 135 °C (-40 °F to 275 °F)
Ingress Protection	IP67

AN1 Series Angle Position Sensor Electrical Specifications

Input Voltage	5.0 VDC ± 10%
Output Voltage vs. Rotation Angle	0° to 5° : 10% of Input Voltage, 5° to 85°: ratiometric (linear from 10% to 90% of Input Voltage), 85° to 120°: 90% of Input Voltage (see chart)
Input Current	8 mA @ 5 VDC
Output Current	-1.25 mA to 1.25 mA
Output Linearity	±2%

AN1 Series Angle Position Sensor Mechanical Specifications

Housing Material	Glass Reinforced Plastic
Mechanical Travel	120° maximum rotation
Rotation Torque	0.21 Nm (30 in oz) max with return spring
Mass	24 g (0.85 oz)
Life	+10 million full cycles

AN1 Series Angle Position Sensor Products

Part Number	Sensing Direction	Connector	Terminal	Housing
AN101101	Counter-clockwise	Delphi Metri-pack 150 12162185	Delphi 12124075	Delphi 12162185
