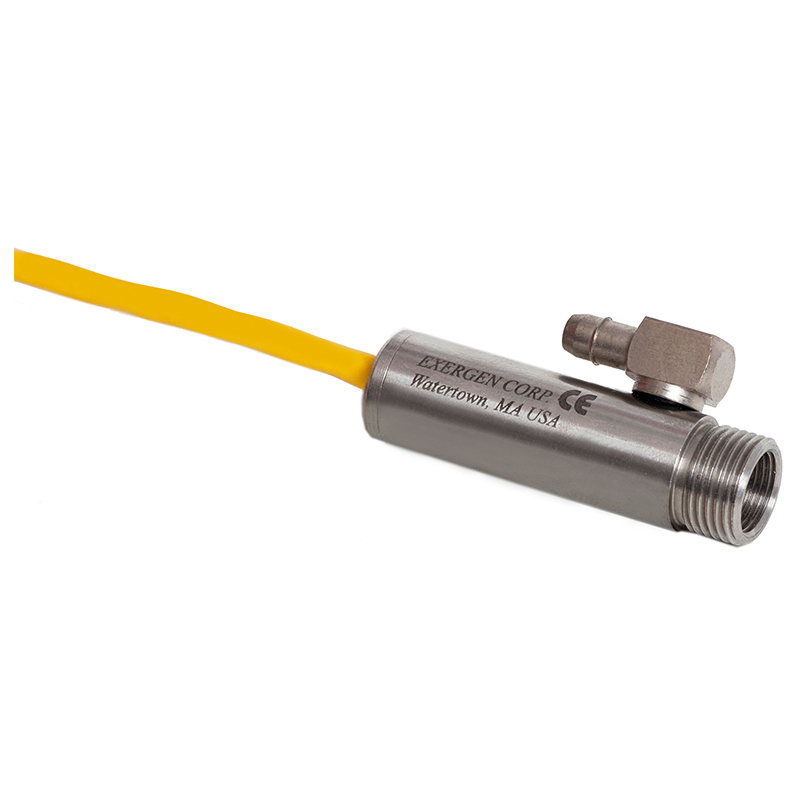

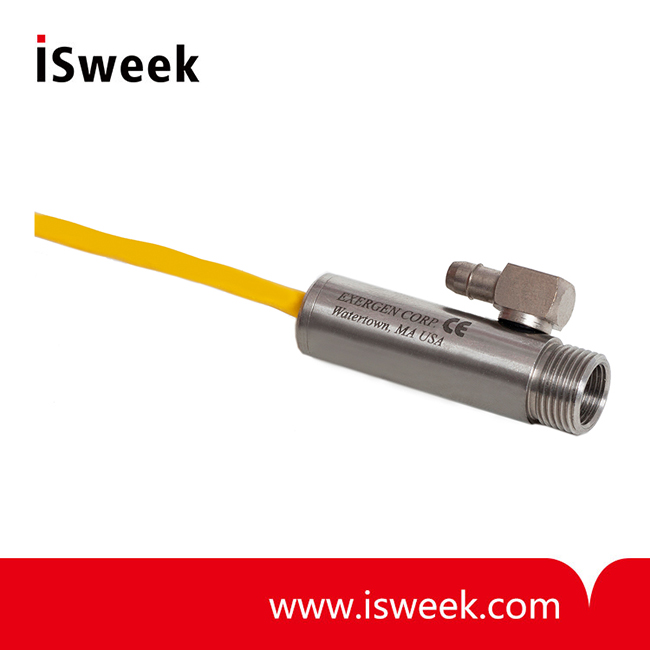

Infrared Temperature Sensors - IRt/c.3X

? Sensing Range: -50 to 1200°F (-45 to 650°C)
? Ambient Temperature: 0 to 248°F (-18 to 120°C)
? Field of View: approximately 3:1 (17°)
? Repeatability 0.02°F (0.01°C)
? Interchangeability ±1%
? Resolution approx. 0.0001°C
? Minimum Spot Size?: .25" (6mm)?
? Spectral Response?: 6.5 to 14μm?
? Output Impedance?: 4 to 8 Kohms approx?
? Response Time?: 100 Milliseconds?

Model Number: IRt/c.3X
Data Sheet:

Quantity:: - +

Inquire Now Add to cart

Mouse over image to zoom

Product Specification

IRt/c.3X Infrared Temperature Sensors Features:
? Infrared Thermocouple IRt/c
? Non-contact
? Self-powered
? Intrinsically Safe
? Repeatability 0.02°F (0.01°C)
? Interchangeability ±1%
? Resolution approx. 0.0001°C
? Small Size

IRt/c.3X Infrared Temperature Sensors Technical Data

Sensing Range	-50 to 1200°F (-45 to 650°C)
Ambient Temperature Range	0 to 248°F (-18 to 120°C)
Optimum Range Selections	Eight models per t/c type (see Temperature Selection Chart)
Field of View	approximately 3:1 (17°)
Minimum Spot Size	.25" (6mm)
Spectral Response	6.5 to 14μm
Output Impedance	4 to 8 Kohms approx
Response Time	100 Milliseconds
Dimensions	1.76" x .50" Dia. (44.7 x 12.7mm)
Housing	Stainless steel, hermetically sealed, exceeds NEMA 4,4X; IP65, 67, cable shield grounded to housing and electrically isolated from signal
Cable	Twisted shielded pair of base thermocouple material (J,K,E,T), 3ft (.9m) std lenght, Telfon sheated, reated to 392°F (200°C) continuous service
Weight	1.4oz. (40 grams) with cable
Air Purge	Built-in; designed for severe paint or ink environment; 3' (0.9 m) of tubing provided
